1103nm High Power Free Space Optical Isolator for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Free Space Optical Isolator is made by micro-optics package technology. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and Clear Aperture (CA) are available, customized on wavelength range and CA are also available on request.
FISF 1103nm 1090nm 1100nm 1103nm 1110nm 1102nm 1111nm 1104nm 1105nm 1095nm 1099nm 1098nm 1097nm 1096nm Optical Isolator Free Space Polarization Sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 1060XP LMA PM1310 PM1550 MM 50/125um 62.5/125um 105/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um Clear Aperture Beam Diameter for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FISF 1103nm 1090nm 1100nm 1103nm 1110nm 1102nm 1111nm 1104nm 1105nm 1095nm 1099nm 1098nm 1097nm 1096nm Optical Isolator Free Space Polarization Sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 1060XP LMA PM1310 PM1550 MM 50/125um 62.5/125um 105/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um Clear Aperture Beam Diameter for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FISF 1103nm 1090nm 1100nm 1103nm 1110nm 1102nm 1111nm 1104nm 1105nm 1095nm 1099nm 1098nm 1097nm 1096nm Optical Isolator Free Space Polarization Sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 1060XP LMA PM1310 PM1550 MM 50/125um 62.5/125um 105/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um Clear Aperture Beam Diameter for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP
TYPICAL SPECIFICATIONS
Center Wavelength 1103nm
Peak Isolation 30
Isolation (23degree) >=22
Insertion Loss (Typ. 23degree) 0.4dB
Insertion Loss (23degree) <=0.7dB
Clear Aperture 2.0mm, 3.0mm, 5.0mm
Input Polarization Horizontal, Vertical
Output Polarization Horizontal, Vertical or 45degree
Max. Average Power 1W, 2W, 3W, 5W, 10W, 20W, 30W, 50W, 80W, 100W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

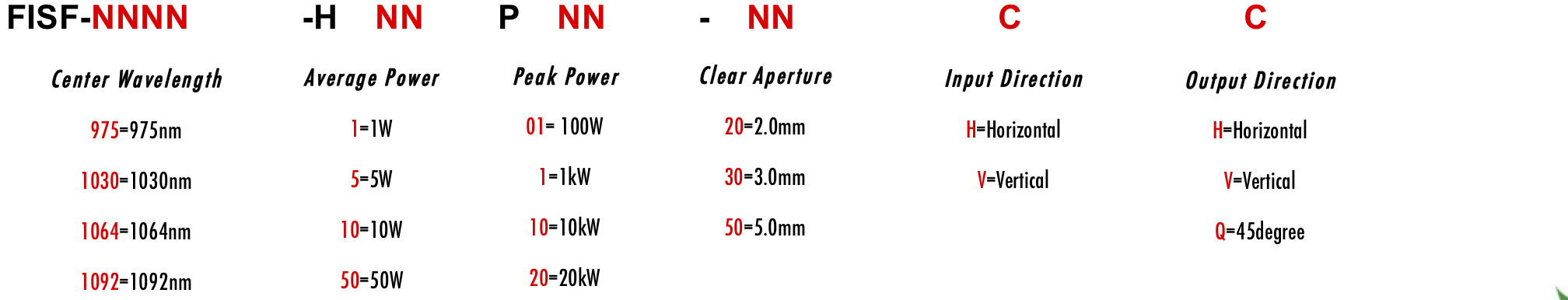

ORDERING INFORMATION/PART NUMBER(PN)
