1120nm High Power Collimating Isolator
DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FISO 1120nm 1110nm 1130nm 1125nm 1115nm 1116nm 1117nm 1118nm 1119nm 1121nm 1122nm 1123nm 1124nm Collimating Collimator Free Space Output Beam size Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 4W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W Watt Watts HP CW Continuous Wave FISO 1120nm 1110nm 1130nm 1125nm 1115nm 1116nm 1117nm 1118nm 1119nm 1121nm 1122nm 1123nm 1124nm Collimating Collimator Free Space Output Beam size Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W Watt Watts HP CW Continuous Wave FISO 1120nm 1110nm 1130nm 1125nm 1115nm 1116nm 1117nm 1118nm 1119nm 1121nm 1122nm 1123nm 1124nm Collimating Collimator Free Space Output Beam size Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W Watt Watts HP CW Continuous Wave
TYPICAL SPECIFICATIONS
Center Wavelength 1120nm
Peak Isolation 25
Isolation (23degree) >=20
Insertion Loss (Typical, 23degree) 0.5dB
Insertion Loss (23degree) <=1.0dB
Nominal Output Beam Diameter 0.5mm, 1mm, 2mm, 5mm or customer specify
Return Loss >=45dB
PDL <=0.15dB
Fiber Type HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 20W, 30W, 50W, 80W, 100W
Operating Temperature 0~50degreeC

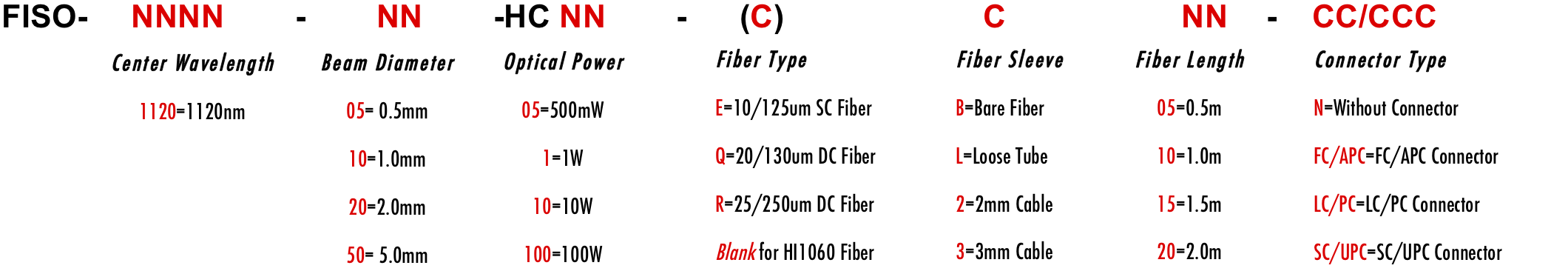

ORDERING INFORMATION/PART NUMBER(PN)
