1120nm High Power Free Space Optical Isolator

DESCRIPTION
Haphit provides fiber based passive components. The Free Space Optical Isolator is made by micro-optics package technology. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and Clear Aperture (CA) are available, customized on wavelength range and CA are also available on request.
FISF 1120nm 1110nm 1130nm 1125nm 1115nm 1116nm 1117nm 1118nm 1119nm 1121nm 1122nm 1123nm 1124nm Optical Isolator Free Space Polarization Sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 1060XP LMA PM1310 PM1550 MM 50/125um 62.5/125um 105/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um Clear Aperture Beam Diameter High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W Watt Watts HP CW Continuous Wave FISF 1120nm 1110nm 1130nm 1125nm 1115nm 1116nm 1117nm 1118nm 1119nm 1121nm 1122nm 1123nm 1124nm Optical Isolator Free Space Polarization Sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 1060XP LMA PM1310 PM1550 MM 50/125um 62.5/125um 105/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um Clear Aperture Beam Diameter High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W Watt Watts HP CW Continuous Wave FISF 1120nm 1110nm 1130nm 1125nm 1115nm 1116nm 1117nm 1118nm 1119nm 1121nm 1122nm 1123nm 1124nm Optical Isolator Free Space Polarization Sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 1060XP LMA PM1310 PM1550 MM 50/125um 62.5/125um 105/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um Clear Aperture Beam Diameter High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W Watt Watts HP CW Continuous Wave
TYPICAL SPECIFICATIONS
Center Wavelength 1120nm
Peak Isolation 30
Isolation (23degree) >=22
Insertion Loss (Typ. 23degree) 0.4dB
Insertion Loss (23degree) <=0.7dB
Clear Aperture 2.0mm, 3.0mm, 5.0mm
Input Polarization Horizontal, Vertical
Output Polarization Horizontal, Vertical or 45degree
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 20W, 30W, 50W, 80W, 100W
Operating Temperature 0~50degreeC

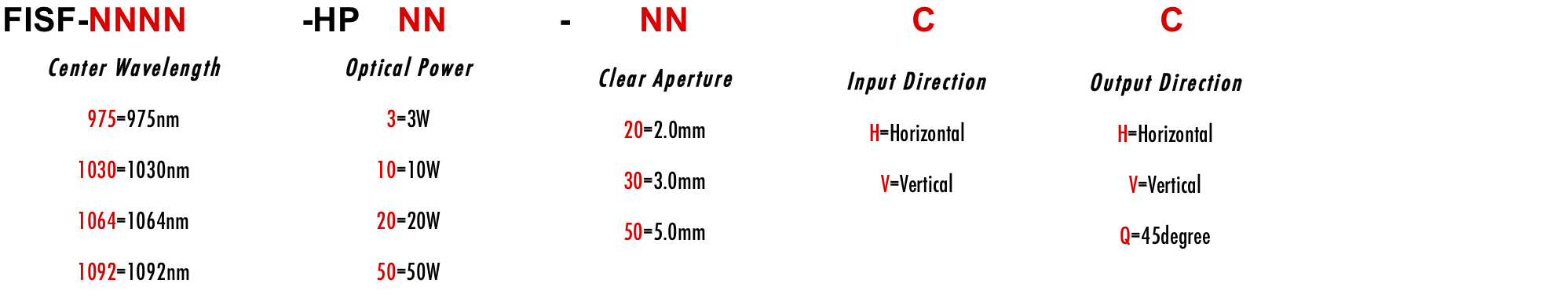

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
