1230nm Optical Isolator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FISO 1230nm 1220nm 1240nm 1235nm 1225nm 1226nm 1227nm 1228nm 1229nm 1231nm 1232nm 1233nm 1234nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 HI1060 Flex 1060XP 6/125 Single Clad Cladding SC 2-port D Type FISO 1230nm 1220nm 1240nm 1235nm 1225nm 1226nm 1227nm 1228nm 1229nm 1231nm 1232nm 1233nm 1234nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 HI1060 Flex 1060XP 6/125 Single Clad Cladding SC 2-port D Type FISO 1230nm 1220nm 1240nm 1235nm 1225nm 1226nm 1227nm 1228nm 1229nm 1231nm 1232nm 1233nm 1234nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 HI1060 Flex 1060XP 6/125 Single Clad Cladding SC 2-port D Type
TYPICAL SPECIFICATIONS
Center Wavelength 1230nm
Bandwidth +/-10nm
Isolation (23degree) >=28
Insertion Loss (23degree) <=1.6dB
Return Loss >=45dB
PDL <=0.15dB
Fiber Type HI1060 Fiber or HI1060 Flex Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

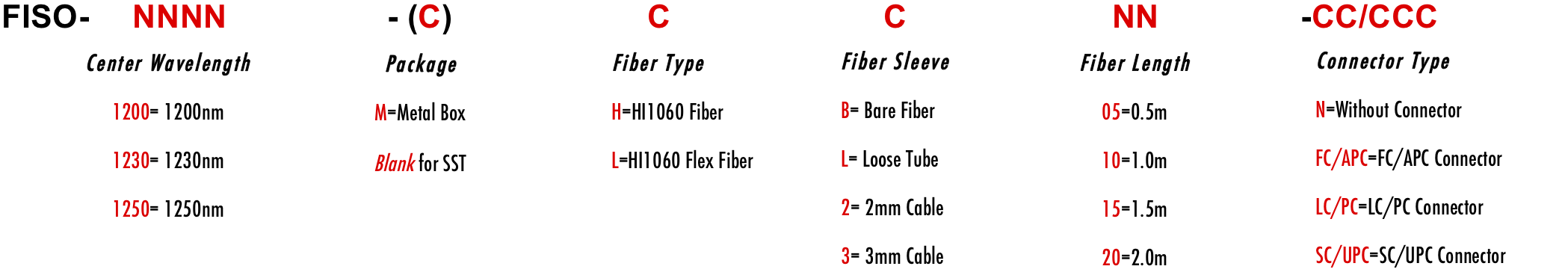

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
