1250nm Optical Isolator for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FISO 1250nm 1240nm 1260nm 1255nm 1245nm 1246nm 1247nm 1248nm 1249nm 1251nm 1252nm 1253nm 1254nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 HI1060 Flex 1060XP 6/125 Single Clad Cladding SC 2-port D Type for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FISO 1250nm 1240nm 1260nm 1255nm 1245nm 1246nm 1247nm 1248nm 1249nm 1251nm 1252nm 1253nm 1254nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 HI1060 Flex 1060XP 6/125 Single Clad Cladding SC 2-port D Type for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FISO 1250nm 1240nm 1260nm 1255nm 1245nm 1246nm 1247nm 1248nm 1249nm 1251nm 1252nm 1253nm 1254nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 HI1060 Flex 1060XP 6/125 Single Clad Cladding SC 2-port D Type for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP
TYPICAL SPECIFICATIONS
Center Wavelength 1250nm
Bandwidth +/-10nm
Isolation (23degree) >=28
Insertion Loss (23degree) <=1.6dB
Return Loss >=45dB
PDL <=0.15dB
Fiber Type HI1060 Fiber or HI1060 Flex Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

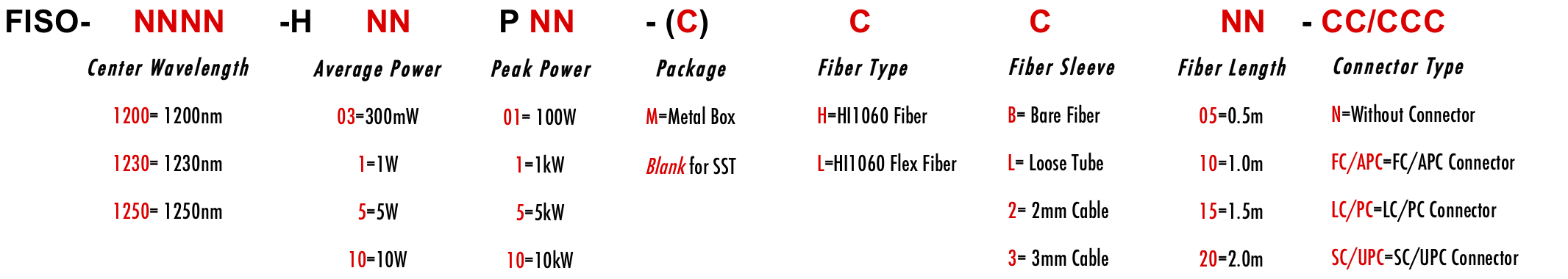

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
