1250nm PM Optical Isolator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Isolator will transmit the signal at single direction. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPIS 1250nm 1240nm 1260nm 1255nm 1245nm 1246nm 1247nm 1248nm 1249nm 1251nm 1252nm 1253nm 1254nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM980XP PM980HP 6/125um PMSC Single Clad Cladding 2-port D Type Polarization Maintaining PM Extinction Ratio ER Panda FPIS 1250nm 1240nm 1260nm 1255nm 1245nm 1246nm 1247nm 1248nm 1249nm 1251nm 1252nm 1253nm 1254nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM980XP PM980HP 6/125um PMSC Single Clad Cladding 2-port D Type Polarization Maintaining PM Extinction Ratio ER Panda FPIS 1250nm 1240nm 1260nm 1255nm 1245nm 1246nm 1247nm 1248nm 1249nm 1251nm 1252nm 1253nm 1254nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM980XP PM980HP 6/125um PMSC Single Clad Cladding 2-port D Type Polarization Maintaining PM Extinction Ratio ER Panda S F
TYPICAL SPECIFICATIONS
Center Wavelength 1250nm
Bandwidth +/-10nm
Isolation (23degree) >=28
Insertion Loss (23degree) <=1.6dB
Return Loss >=45dB
Extinction Ratio >=18dB
Fiber Type PM980 Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

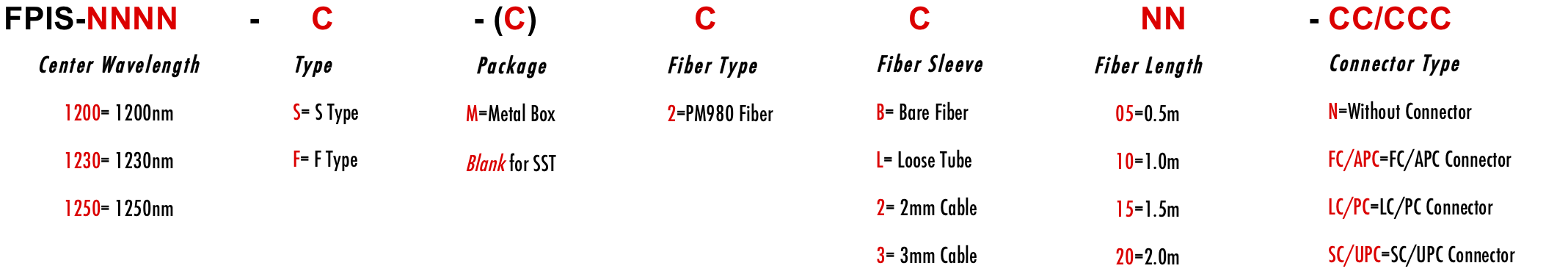

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
