950nm High Power Dual Stage Isolator for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FISO 950nm 940nm 960nm 945nm 955nm 942nm 956nm 952nm Dual Stage Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI780 780HP 5/125um 4/125um HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FISO 950nm 940nm 960nm 945nm 955nm 942nm 956nm 952nm Dual Stage Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI780 780HP 5/125um 4/125um HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FISO 950nm 940nm 960nm 945nm 955nm 942nm 956nm 952nm Dual Stage Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI780 780HP 5/125um 4/125um HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP L
TYPICAL SPECIFICATIONS
Center Wavelength 950nm
Peak Isolation 40
Isolation (23degree) >=35
Insertion Loss (Typical, 23degree) 1.5dB
Insertion Loss (23degree) <=2.5dB
Configuration Standard: 2-port
Y Type: 3-port, Backward Light Guides Out
Return Loss >=45dB
PDL <=0.2dB
Fiber Type HI780 Fiber, HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Max. Average Power 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

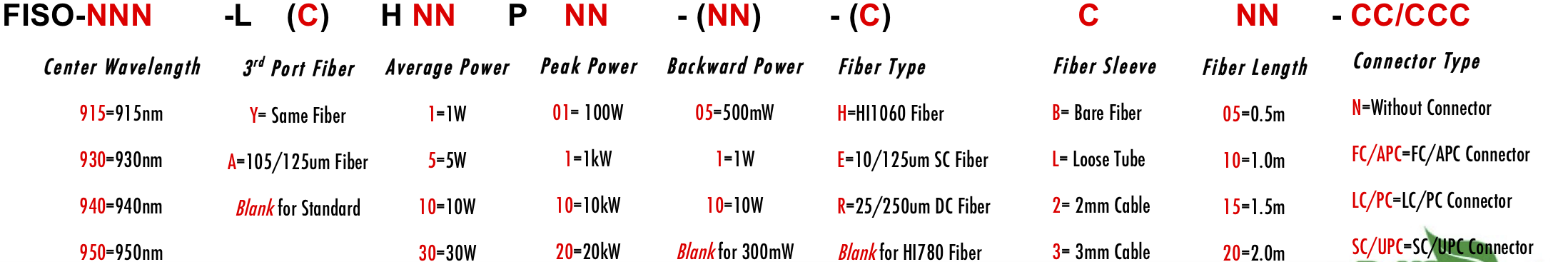

ORDERING INFORMATION/PART NUMBER(PN)
