950nm High Power PM Optical Isolator
DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Isolator will transmit the signal at single direction. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPIS 950nm 940nm 960nm 945nm 955nm 942nm 956nm 952nm PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM850 PM780HP PM980 PM980XP PM980HP LMA 4/125um 5/125um 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 4W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W Watt Watts HP CW Continuous Wave FPIS 950nm 940nm 960nm 945nm 955nm 942nm 956nm 952nm PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM850 PM780HP PM980 PM980XP PM980HP LMA 4/125um 5/125um 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W Watt Watts HP CW Continuous Wave FPIS 950nm 940nm 960nm 945nm 955nm 942nm 956nm 952nm PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM850 PM780HP PM980 PM980XP PM980HP LMA 4/125um 5/125um 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W Watt Watts HP CW Continuous Wave SY SA S5 FY FA F5
TYPICAL SPECIFICATIONS
Center Wavelength 950nm
Peak Isolation 25
Isolation (23degree) >=20
Insertion Loss (Typical, 23degree) 1.3dB
Insertion Loss (23degree) <=1.8dB
Configuration Standard: 2-port
Y Type: 3-port, Backward Light Guides Out
Return Loss >=45dB
Extinction Ratio >=18dB
Fiber Type PM850 Fiber, PM980 Fiber or PM1060L Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 20W, 30W, 50W, 80W, 100W
Operating Temperature 0~50degreeC

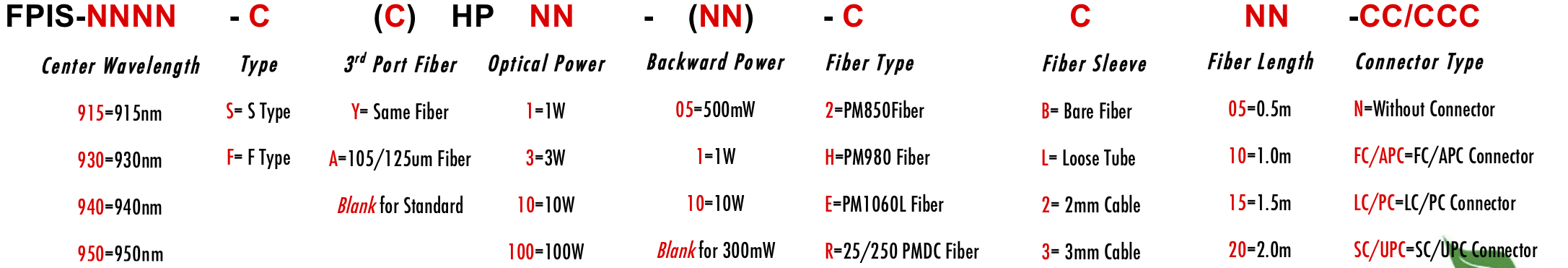

ORDERING INFORMATION/PART NUMBER(PN)
