975nm High Power Dual Stage PM Isolator
DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Isolator will transmit the signal at single direction. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPIS 975nm 970nm 980nm 965nm 976nm 974nm Dual Stage PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 4W 5W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave FPIS 975nm 970nm 980nm 965nm 976nm 974nm Dual Stage PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave FPIS 975nm 970nm 980nm 965nm 976nm 974nm Dual Stage PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave LSY LSA LS5 LFY LFA LF5
TYPICAL SPECIFICATIONS
Center Wavelength
975nm
Peak Isolation
40
Isolation (23degree)
>=35
Insertion Loss (Typical, 23degree)
1.5dB
Insertion Loss (23degree)
<=2.3dB
Configuration
Standard: 2-port
Y Type: 3-port, Backward Light Guides Out
Return Loss
>=45dB
Extinction Ratio
>=18dB
Fiber Type
PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW)
1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Operating Temperature
0~50degreeC

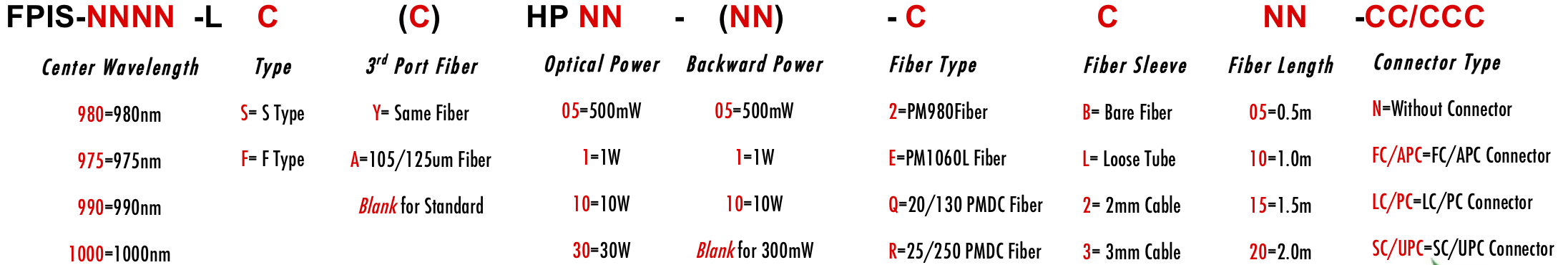

ORDERING INFORMATION/PART NUMBER(PN)
