488nm Inline Optical Isolator
DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FISO 488nm 460nm 500nm 470nm 480nm 490nm 465nm 475nm 485nm 495nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? 460HP 3/125 4/125 3-port Y Type FISO 488nm 460nm 500nm 470nm 480nm 490nm 465nm 475nm 485nm 495nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? 460HP 3/125 4/125 3-port Y Type FISO 488nm 460nm 500nm 470nm 480nm 490nm 465nm 475nm 485nm 495nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? 460HP 3/125 4/125 3-port Y Type
TYPICAL SPECIFICATIONS
Center Wavelength 488nm
Peak Isolation 25dB
Isolation (23degree) >=20dB
Insertion Loss (Typical, 23degree) 1.6dB
Insertion Loss (23degree) <=2.2dB
Return Loss >=45dB
PDL <=0.3dB
Fiber Type 460-HP Fiber
Max. Optical Power (CW) 30mW
Operating Temperature 10~45degreeC

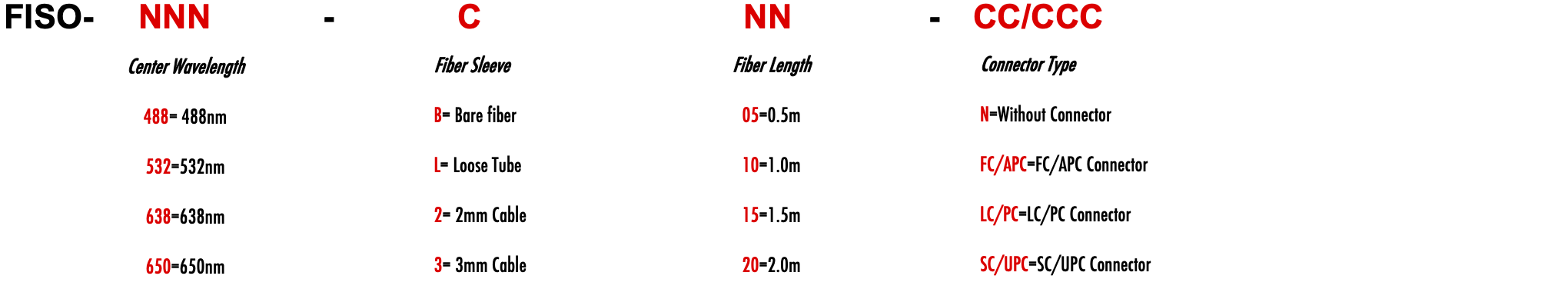

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
