520nm Inline PM Optical Isolator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Isolator will transmit the signal at single direction. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPIS 520nm 532nm 500nm 600nm 510nm 520nm 530nm 540nm 550nm 560nm 570nm 580nm 590nm 505nm 515nm 525nm 535nm 545nm 555nm 565nm 575nm 585nm 595nm PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM460HP 3/125um 4/125um 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda FPIS 520nm 532nm 500nm 600nm 510nm 520nm 530nm 540nm 550nm 560nm 570nm 580nm 590nm 505nm 515nm 525nm 535nm 545nm 555nm 565nm 575nm 585nm 595nm PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM460HP 3/125um 4/125um 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda FPIS 520nm 532nm 500nm 600nm 510nm 520nm 530nm 540nm 550nm 560nm 570nm 580nm 590nm 505nm 515nm 525nm 535nm 545nm 555nm 565nm 575nm 585nm 595nm PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM460HP 3/125um 4/125um 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda S F
TYPICAL SPECIFICATIONS
Center Wavelength 520nm
Peak Isolation 25dB
Isolation (23degree) >=20dB
Insertion Loss (Typical, 23degree) 1.6dB
Insertion Loss (23degree) <=2.2dB
Return Loss >=45dB
Extinction Ratio >=16dB
Fiber Type PM460-HP Fiber
Max. Optical Power (CW) 30mW
Operating Temperature 10~45degreeC

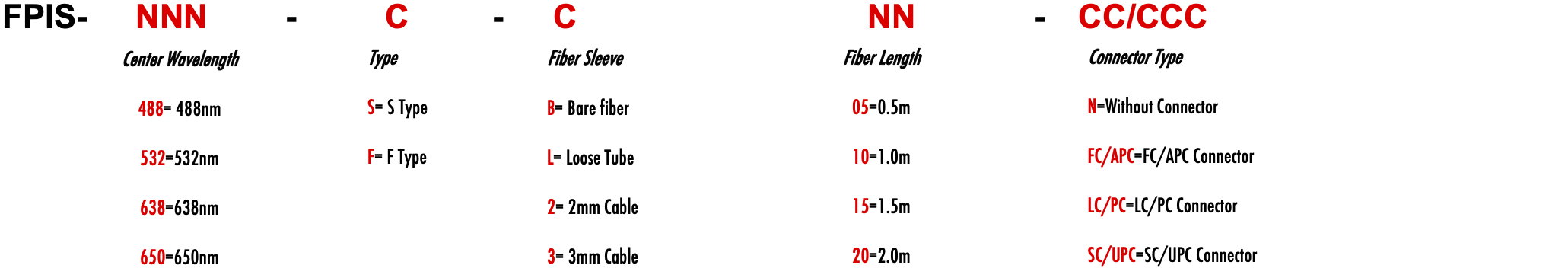

ORDERING INFORMATION/PART NUMBER(PN)
