532nm Inline Optical Isolator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FISO 532nm 500nm 600nm 510nm 520nm 530nm 540nm 550nm 560nm 570nm 580nm 590nm 505nm 515nm 525nm 535nm 545nm 555nm 565nm 575nm 585nm 595nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? 460HP 3/125 4/125 3-port Y Type FISO 532nm 500nm 600nm 510nm 520nm 530nm 540nm 550nm 560nm 570nm 580nm 590nm 505nm 515nm 525nm 535nm 545nm 555nm 565nm 575nm 585nm 595nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? 460HP 3/125 4/125 3-port Y Type FISO 532nm 500nm 600nm 510nm 520nm 530nm 540nm 550nm 560nm 570nm 580nm 590nm 505nm 515nm 525nm 535nm 545nm 555nm 565nm 575nm 585nm 595nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? 460HP 3/125 4/125 3-port Y Type
TYPICAL SPECIFICATIONS
Center Wavelength 532nm
Peak Isolation 25dB
Isolation (23degree) >=20dB
Insertion Loss (Typical, 23degree) 1.6dB
Insertion Loss (23degree) <=2.2dB
Return Loss >=45dB
PDL <=0.3dB
Fiber Type 460-HP Fiber
Max. Optical Power (CW) 30mW
Operating Temperature 10~45degreeC

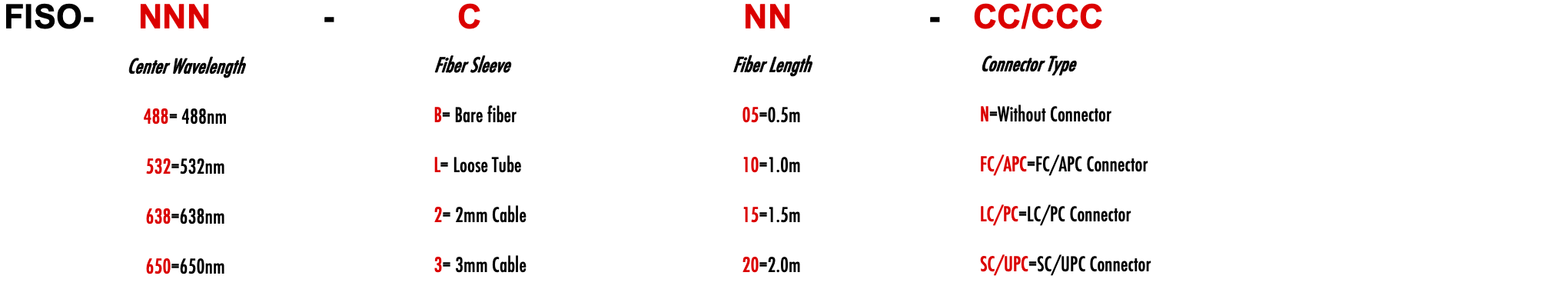

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
