689nm Inline Optical Isolator
DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FISO 689nm 670nm 680nm 690nm 700nm 675nm 685nm 695nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? 630HP 3/125 4/125 3-port Y Type FISO 689nm 670nm 680nm 690nm 700nm 675nm 685nm 695nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? 630HP 3/125 4/125 3-port Y Type FISO 689nm 670nm 680nm 690nm 700nm 675nm 685nm 695nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? 630HP 3/125 4/125 3-port Y Type
TYPICAL SPECIFICATIONS
Center Wavelength 689nm
Peak Isolation 25dB
Isolation (23degree) >=20dB
Insertion Loss (Typical, 23degree) 1.3dB
Insertion Loss (23degree) <=1.8dB
Return Loss >=45dB
PDL <=0.3dB
Fiber Type 630-HP Fiber
Max. Optical Power (CW) 30mW
Operating Temperature 10~45degreeC

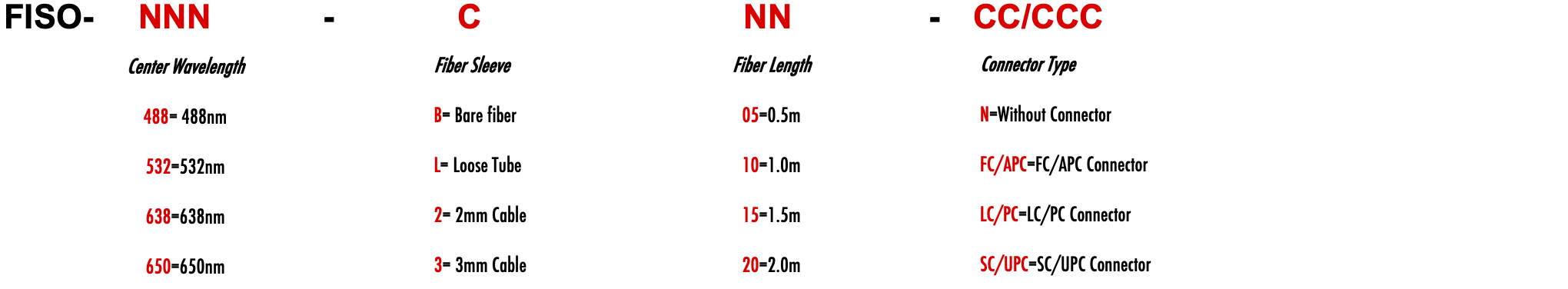

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
