689nm Inline PM Optical Isolator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Isolator will transmit the signal at single direction. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPIS 689nm 670nm 680nm 690nm 700nm 675nm 685nm 695nm PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM630HP 3/125um 4/125um 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda FPIS 689nm 670nm 680nm 690nm 700nm 675nm 685nm 695nm PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM630HP 3/125um 4/125um 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda FPIS 689nm 670nm 680nm 690nm 700nm 675nm 685nm 695nm PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM630HP 3/125um 4/125um 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda S F
TYPICAL SPECIFICATIONS
Center Wavelength 689nm
Peak Isolation 25dB
Isolation (23degree) >=20dB
Insertion Loss (Typical, 23degree) 1.3dB
Insertion Loss (23degree) <=1.8dB
Return Loss >=45dB
Extinction Ratio >=16dB
Fiber Type PM630-HP Fiber
Max. Optical Power (CW) 30mW
Operating Temperature 10~45degreeC

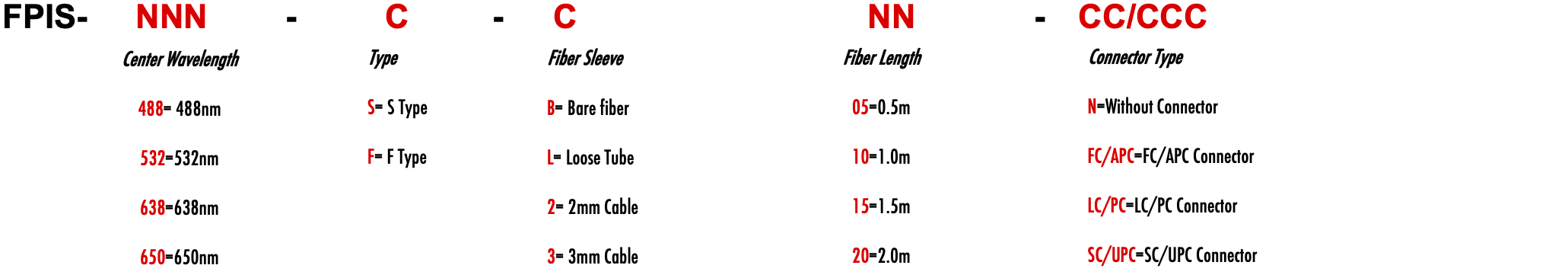

ORDERING INFORMATION/PART NUMBER(PN)
