1064nm Minisize High Power Tap/Isolator Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The Tap/Isolator Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum, high Isolation and various Tap Ratio. The Tap/Isolator Hybrid will transmit the signal at single direction while at the same time tap a certain ratio portion of signal light for monitoring purpose. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FTIS 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm Tap/Isolator Hybrid Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? Iso HYB HYBR HY HB Splitter Tap Coupler coupleur dieses Acoplador HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 500mW 1W 2W 3W 5W Watt Watts HP CW Continuous Wave FTIS 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm Tap/Isolator Hybrid Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? Iso HYB HYBR HY HB Splitter Tap Coupler coupleur dieses Acoplador HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 500mW 1W 2W 3W 5W Watt Watts HP CW Continuous Wave FTIS 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm Tap/Isolator Hybrid Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? Iso HYB HYBR HY HB Splitter Tap Coupler coupleur dieses Acoplador HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 500mW 1W 2W 3W 5W Watt Watts HP CW Continuous Wave M001A M01A M02A M03A M04A M05A M06A M07A M08A M09A M10A M11A M12A M13A M14A M15A M16A M17A M18A M19A M20A M21A M22A M23A M24A M25A M26A M27A M28A M29A M30A M31A M32A M33A M34A M35A M36A M37A M38A M39A M40A M41A M42A M43A M44A M45A M46A M47A M48A M49A M50A M51A M52A M53A M54A M55A M56A M57A M58A M59A M60A M61A M62A M63A M64A M65A M66A M67A M68A M69A M70A M71A M72A M73A M74A M75A M76A M77A M78A M79A M80A M81A M82A M83A M84A M85A M86A M87A M88A M89A M90A M91A M92A M93A M94A M95A M96A M97A M98A M99A M001Y M01Y M02Y M03Y M04Y M05Y M06Y M07Y M08Y M09Y M10Y M11Y M12Y M13Y M14Y M15Y M16Y M17Y M18Y M19Y M20Y M21Y M22Y M23Y M24Y M25Y M26Y M27Y M28Y M29Y M30Y M31Y M32Y M33Y M34Y M35Y M36Y M37Y M38Y M39Y M40Y M41Y M42Y M43Y M44Y M45Y M46Y M47Y M48Y M49Y M50Y M51Y M52Y M53Y M54Y M55Y M56Y M57Y M58Y M59Y M60Y M61Y M62Y M63Y M64Y M65Y M66Y M67Y M68Y M69Y M70Y M71Y M72Y M73Y M74Y M75Y M76Y M77Y M78Y M79Y M80Y M81Y M82Y M83Y M84Y M85Y M86Y M87Y M88Y M89Y M90Y M91Y M92Y M93Y M94Y M95Y M96Y M97Y M98Y M99Y M0015 M015 M025 M035 M045 M055 M065 M075 M085 M095 M105 M115 M125 M135 M145 M155 M165 M175 M185 M195 M205 M215 M225 M235 M245 M255 M265 M275 M285 M295 M305 M315 M325 M335 M345 M355 M365 M375 M385 M395 M405 M415 M425 M435 M445 M455 M465 M475 M485 M495 M505 M515 M525 M535 M545 M555 M565 M575 M585 M595 M605 M615 M625 M635 M645 M655 M665 M675 M685 M695 M705 M715 M725 M735 M745 M755 M765 M775 M785 M795 M805 M815 M825 M835 M845 M855 M865 M875 M885 M895 M905 M915 M925 M935 M945 M955 M965 M975 M985 M995 M0016 M016 M026 M036 M046 M056 M066 M076 M086 M096 M106 M116 M126 M136 M146 M156 M166 M176 M186 M196 M206 M216 M226 M236 M246 M256 M266 M276 M286 M296 M306 M316 M326 M336 M346 M356 M366 M376 M386 M396 M406 M416 M426 M436 M446 M456 M466 M476 M486 M496 M506 M516 M526 M536 M546 M556 M566 M576 M586 M596 M606 M616 M626 M636 M646 M656 M666 M676 M686 M696 M706 M716 M726 M736 M746 M756 M766 M776 M786 M796 M806 M816 M826 M836 M846 M856 M866 M876 M886 M896 M906 M916 M926 M936 M946 M956 M966 M976 M986 M996 M001B M01B M02B M03B M04B M05B M06B M07B M08B M09B M10B M11B M12B M13B M14B M15B M16B M17B M18B M19B M20B M21B M22B M23B M24B M25B M26B M27B M28B M29B M30B M31B M32B M33B M34B M35B M36B M37B M38B M39B M40B M41B M42B M43B M44B M45B M46B M47B M48B M49B M50B M51B M52B M53B M54B M55B M56B M57B M58B M59B M60B M61B M62B M63B M64B M65B M66B M67B M68B M69B M70B M71B M72B M73B M74B M75B M76B M77B M78B M79B M80B M81B M82B M83B M84B M85B M86B M87B M88B M89B M90B M91B M92B M93B M94B M95B M96B M97B M98B M99B
TYPICAL SPECIFICATIONS
Center Wavelength 1064nm
Isolation (23degree) >=22
Excess Loss <=3.3dB (0.5~1W Power) <=3.8 (2~5W Power)
Tap Ratio 0.1%, 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%
Work Mode Tap Input Light before Isolator
Return Loss >=45
PDL <=0.2dB
Fiber Type HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Max. Optical Power (CW) 500mW, 1W, 2W, 3W, 4W, 5W
Operating Temperature 0~50degreeC

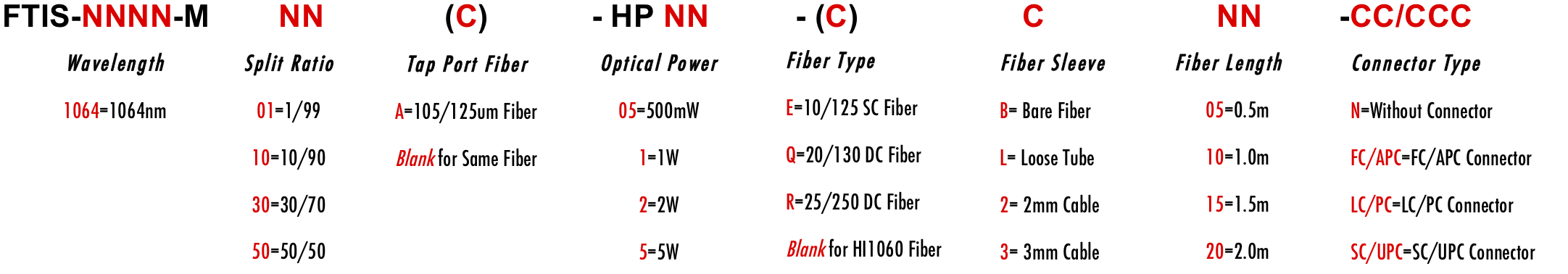

ORDERING INFORMATION/PART NUMBER(PN)
