1064nm High Power Tap/Isolator Hybrid for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Tap/Isolator Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum, high Isolation and various Tap Ratio. The Tap/Isolator Hybrid will transmit the signal at single direction while at the same time tap a certain ratio portion of signal light for monitoring purpose. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FTIS 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm Tap/Isolator Hybrid Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? Iso HYB HYBR HY HB Splitter Tap Coupler coupleur dieses Acoplador HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 500mW 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FTIS 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm Tap/Isolator Hybrid Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? Iso HYB HYBR HY HB Splitter Tap Coupler coupleur dieses Acoplador HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 500mW 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FTIS 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm Tap/Isolator Hybrid Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? Iso HYB HYBR HY HB Splitter Tap Coupler coupleur dieses Acoplador HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 500mW 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 001A 01A 02A 03A 04A 05A 06A 07A 08A 09A 10A 11A 12A 13A 14A 15A 16A 17A 18A 19A 20A 21A 22A 23A 24A 25A 26A 27A 28A 29A 30A 31A 32A 33A 34A 35A 36A 37A 38A 39A 40A 41A 42A 43A 44A 45A 46A 47A 48A 49A 50A 51A 52A 53A 54A 55A 56A 57A 58A 59A 60A 61A 62A 63A 64A 65A 66A 67A 68A 69A 70A 71A 72A 73A 74A 75A 76A 77A 78A 79A 80A 81A 82A 83A 84A 85A 86A 87A 88A 89A 90A 91A 92A 93A 94A 95A 96A 97A 98A 99A 001Y 01Y 02Y 03Y 04Y 05Y 06Y 07Y 08Y 09Y 10Y 11Y 12Y 13Y 14Y 15Y 16Y 17Y 18Y 19Y 20Y 21Y 22Y 23Y 24Y 25Y 26Y 27Y 28Y 29Y 30Y 31Y 32Y 33Y 34Y 35Y 36Y 37Y 38Y 39Y 40Y 41Y 42Y 43Y 44Y 45Y 46Y 47Y 48Y 49Y 50Y 51Y 52Y 53Y 54Y 55Y 56Y 57Y 58Y 59Y 60Y 61Y 62Y 63Y 64Y 65Y 66Y 67Y 68Y 69Y 70Y 71Y 72Y 73Y 74Y 75Y 76Y 77Y 78Y 79Y 80Y 81Y 82Y 83Y 84Y 85Y 86Y 87Y 88Y 89Y 90Y 91Y 92Y 93Y 94Y 95Y 96Y 97Y 98Y 99Y S0015 015 025 035 045 055 065 075 085 095 105 115 125 135 145 155 165 175 185 195 205 215 225 235 245 255 265 275 285 295 305 315 325 335 345 355 365 375 385 395 405 415 425 435 445 455 465 475 485 495 505 515 525 535 545 555 565 575 585 595 605 615 625 635 645 655 665 675 685 695 705 715 725 735 745 755 765 775 785 795 805 815 825 835 845 855 865 875 885 895 905 915 925 935 945 955 965 975 985 995 S0016 016 026 036 046 056 066 076 086 096 106 116 126 136 146 156 166 176 186 196 206 216 226 236 246 256 266 276 286 296 306 316 326 336 346 356 366 376 386 396 406 416 426 436 446 456 466 476 486 496 506 516 526 536 546 556 566 576 586 596 606 616 626 636 646 656 666 676 686 696 706 716 726 736 746 756 766 776 786 796 806 816 826 836 846 856 866 876 886 896 906 916 926 936 946 956 966 976 986 996 S001B 01B 02B 03B 04B 05B 06B 07B 08B 09B 10B 11B 12B 13B 14B 15B 16B 17B 18B 19B 20B 21B 22B 23B 24B 25B 26B 27B 28B 29B 30B 31B 32B 33B 34B 35B 36B 37B 38B 39B 40B 41B 42B 43B 44B 45B 46B 47B 48B 49B 50B 51B 52B 53B 54B 55B 56B 57B 58B 59B 60B 61B 62B 63B 64B 65B 66B 67B 68B 69B 70B 71B 72B 73B 74B 75B 76B 77B 78B 79B 80B 81B 82B 83B 84B 85B 86B 87B 88B 89B 90B 91B 92B 93B 94B 95B 96B 97B 98B 99B
TYPICAL SPECIFICATIONS
Center Wavelength 1064nm
Isolation (23degree) >=20
Excess Loss <=1.8dB
Tap Ratio 0.1%, 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%
Work Mode Tap Input Light before Isolator
Return Loss >=45dB
PDL <=0.2dB
Fiber Type HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

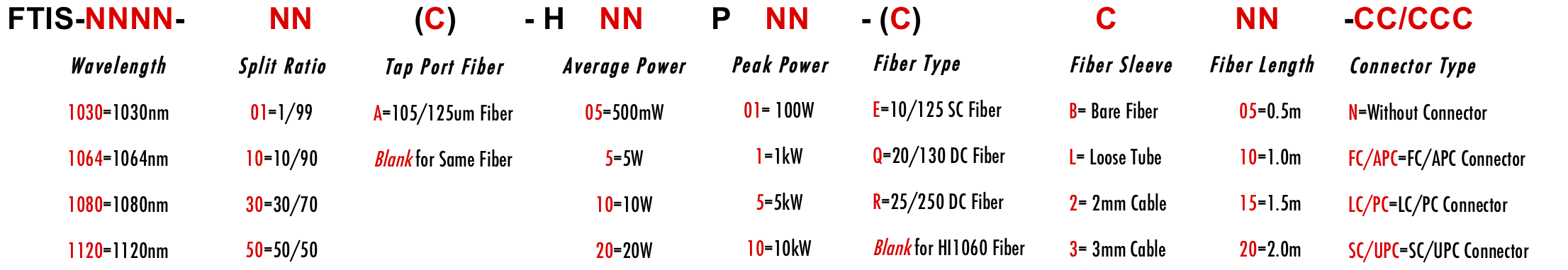

ORDERING INFORMATION/PART NUMBER(PN)
