1070nm High Power 4-port PM Optical Circulator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Circulator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Circulator will transmit the signal in a circular route. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPCR 1070nm 1060nm 1080nm 1065nm 1064nm 1075nm 1072nm 1073nm 1076nm PM Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W 25W 30W  Watt Watts HP CW Continuous Wave FPCR 1070nm 1060nm 1080nm 1065nm 1064nm 1075nm 1072nm 1073nm 1076nm PM Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave FPCR 1070nm 1060nm 1080nm 1065nm 1064nm 1075nm 1072nm 1073nm 1076nm PM Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W 25W 30W  Watt Watts HP CW Continuous Wave F F4
TYPICAL SPECIFICATIONS
Center Wavelength 1070nm
Insertion Loss <=2.1dB
Isolation >=22dB
Return Loss >=45dB
Extinction Ratio >=18dB
Work Mode S Type: Can only work in slow axis
F Type: Can work both in slow axis and fast axis
Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Operating Temperature 0~50degreeC

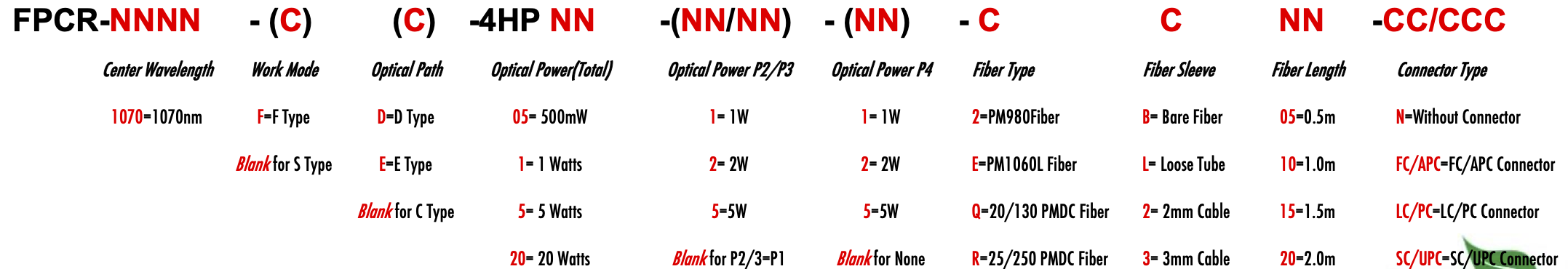

ORDERING INFORMATION/PART NUMBER(PN)
