1120nm Multimode 3-port Optical Circulator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Circulator is made by micro-optics package technology with Multimode (MM) fiber in and MM fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Circulator will transmit the signal in a circular route. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCIR 1120nm 1110nm 1130nm 1115nm 1113nm 1116nm 1119nm 1123nm 1125nm 1126nm 1128nm MM Multimode Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W 25W 30W  Watt Watts HP CW Continuous Wave FCIR 1120nm 1110nm 1130nm 1115nm 1113nm 1116nm 1119nm 1123nm 1125nm 1126nm 1128nm MM Multimode Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave FCIR 1120nm 1110nm 1130nm 1115nm 1113nm 1116nm 1119nm 1123nm 1125nm 1126nm 1128nm MM Multimode Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W 25W 30W  Watt Watts HP CW Continuous Wave 3
TYPICAL SPECIFICATIONS
Center Wavelength 1120nm
Insertion Loss <=2.3dB
Isolation >=18dB
Return Loss >=25dB
Crosstalk >=25dB
Fiber Type 50/125um or 62.5/125um MM Fiber
50/125um OM3 MM Fiber
Max. Optical Power (CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Operating Temperature 0~50degreeC

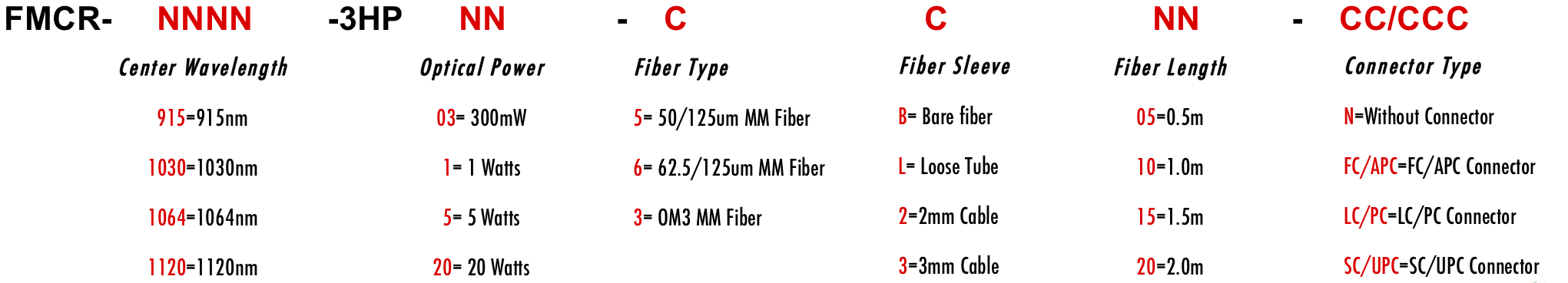

ORDERING INFORMATION/PART NUMBER(PN)
