940nm Multimode 3-port Optical Circulator for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Optical Circulator is made by micro-optics package technology with Multimode (MM) fiber in and MM fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Circulator will transmit the signal in a circular route. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCIR 940nm 930nm 950nm 935nm 936nm 945nm 946nm MM Multimode Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type for Pulse Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W 25W 30W  100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FCIR 940nm 930nm 950nm 935nm 936nm 945nm 946nm MM Multimode Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type for Pulse Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W 25W 30W  100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FCIR 940nm 930nm 950nm 935nm 936nm 945nm 946nm MM Multimode Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type for Pulse Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W 25W 30W  100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 3
TYPICAL SPECIFICATIONS
Center Wavelength 940nm
Insertion Loss <=2.3dB
Isolation >=18dB
Return Loss >=25dB
Crosstalk >=25dB
Fiber Type 50/125um or 62.5/125um MM Fiber
50/125um OM3 MM Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

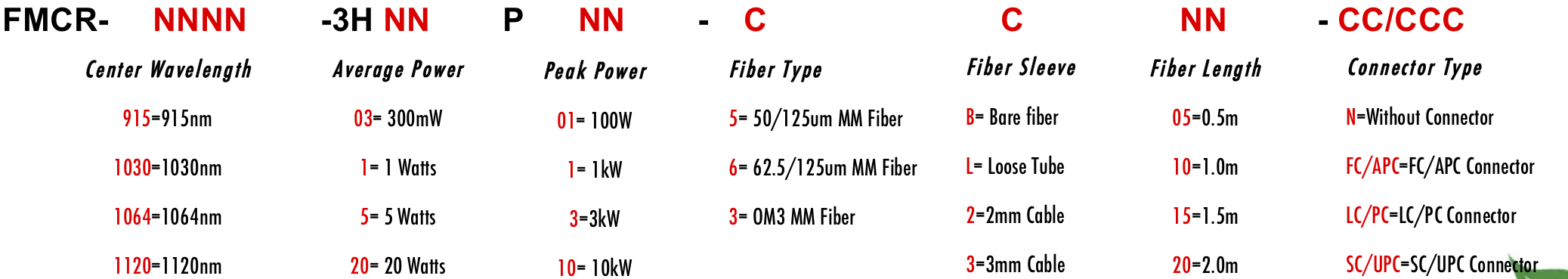

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
