780nm 4-port Optical Circulator for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Optical Circulator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Circulator will transmit the signal in a circular route. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCIR 780nm 770nm 790nm 775nm 776nm 785nm 782nm 786nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad 4-port X Type for Pulse Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W  100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FCIR 780nm 770nm 790nm 775nm 776nm 785nm 782nm 786nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad 4-port X Type for Pulse Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W  100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FCIR 780nm 770nm 790nm 775nm 776nm 785nm 782nm 786nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad 4-port X Type for Pulse Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W  100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 4
TYPICAL SPECIFICATIONS
Center Wavelength 780nm
Insertion Loss <=2.5dB
Isolation >=16dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type HI780 Fiber or 780-HP Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

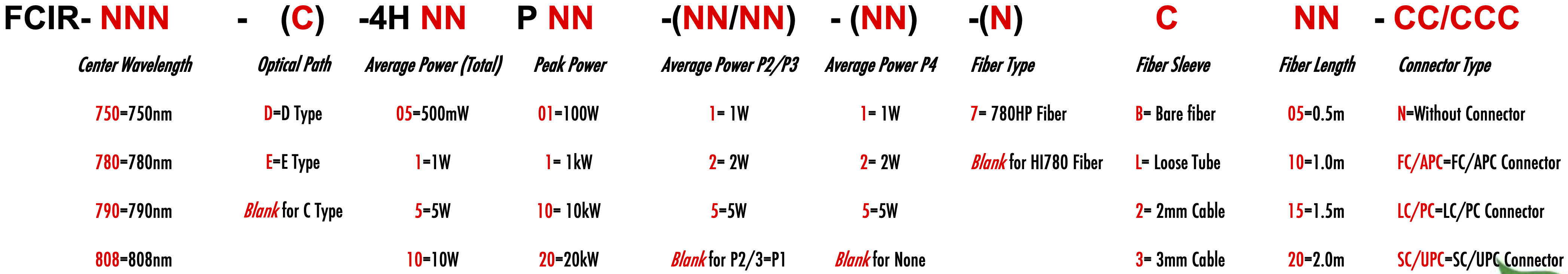

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
