793nm 4-port PM Optical Circulator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Circulator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Circulator will transmit the signal in a circular route. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPCR 793nm 780nm 783nm 800nm 803nm 795nm 796nm PM Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu PM850 PM780HP 4/125um 5/125um 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W  Watt Watts HP CW Continuous Wave FPCR 793nm 780nm 783nm 800nm 803nm 795nm 796nm PM Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu PM850 PM780HP 4/125um 5/125um 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W Watt Watts HP CW Continuous Wave FPCR 793nm 780nm 783nm 800nm 803nm 795nm 796nm PM Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu PM850 PM780HP 4/125um 5/125um 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W  Watt Watts HP CW Continuous Wave F F4
TYPICAL SPECIFICATIONS
Center Wavelength 793nm
Insertion Loss <=2.5dB
Isolation >=16dB
Return Loss >=45dB
Extinction Ratio >=16dB
Work Mode S Type: Can only work in slow axis
F Type: Can work both in slow axis and fast axis
Fiber Type PM850 Fiber or PM780-HP Fiber
Max. Optical Power (CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~50degreeC

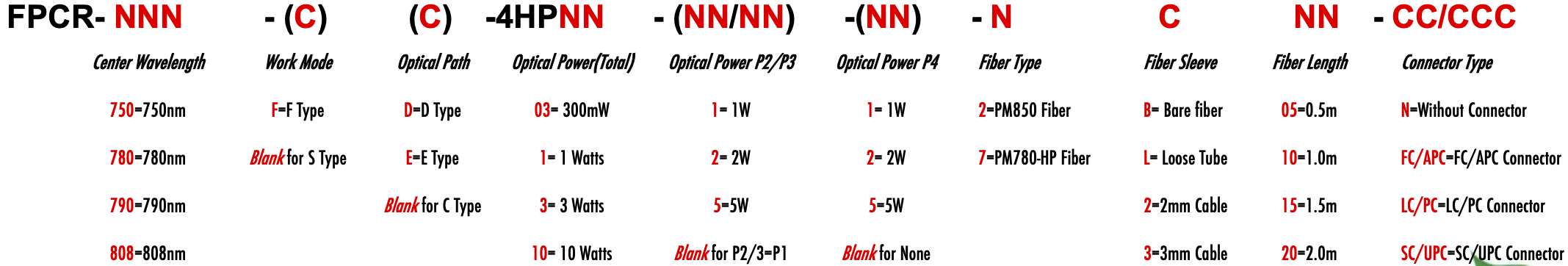

ORDERING INFORMATION/PART NUMBER(PN)
