488nm 4-port Optical Circulator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Circulator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Circulator will transmit the signal in a circular route. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCIR 488nm 460nm 470nm 480nm 490nm 500nm 465nm 475nm 485nm 495nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu 460HP 3/125um 4/125um SC Single Clad Cladding DC Double Clad 4-port X Type FCIR 488nm 460nm 470nm 480nm 490nm 500nm 465nm 475nm 485nm 495nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu 460HP 3/125um 4/125um SC Single Clad Cladding DC Double Clad 4-port X Type FCIR 488nm 460nm 470nm 480nm 490nm 500nm 465nm 475nm 485nm 495nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu 460HP 3/125um 4/125um SC Single Clad Cladding DC Double Clad 4-port X Type 4
TYPICAL SPECIFICATIONS
Center Wavelength 488nm
Insertion Loss <=2.6dB
Isolation >=16dB
Return Loss >=45dB
PDL <=0.3dB
Fiber Type 460-HP Fiber
Max. Optical Power (CW) 30mW
Operating Temperature 10~50degreeC

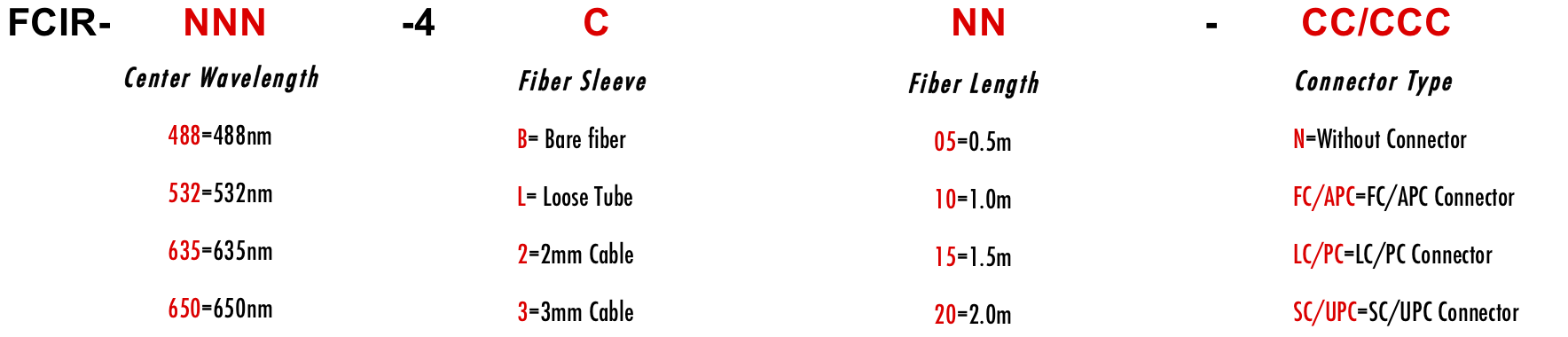

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
