690nm 3-port Optical Circulator
DESCRIPTION
Haphit provides fiber based passive components. The Optical Circulator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Circulator will transmit the signal in a circular route. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCIR 690nm 660nm 670nm 680nm 700nm 665nm 675nm 685nm 695nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu 630HP 3/125um 4/125um SC Single Clad Cladding DC Double Clad 3-port Y Type FCIR 690nm 660nm 670nm 680nm 700nm 665nm 675nm 685nm 695nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu 630HP 3/125um 4/125um SC Single Clad Cladding DC Double Clad 3-port Y Type FCIR 690nm 660nm 670nm 680nm 700nm 665nm 675nm 685nm 695nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu 630HP 3/125um 4/125um SC Single Clad Cladding DC Double Clad 3-port Y Type 3
TYPICAL SPECIFICATIONS
Center Wavelength 690nm
Insertion Loss <=2.0dB
Isolation >=17dB
Return Loss >=45dB
PDL <=0.3dB
Fiber Type 630-HP Fiber
Max. Optical Power (CW) 30mW
Operating Temperature 10~50degreeC

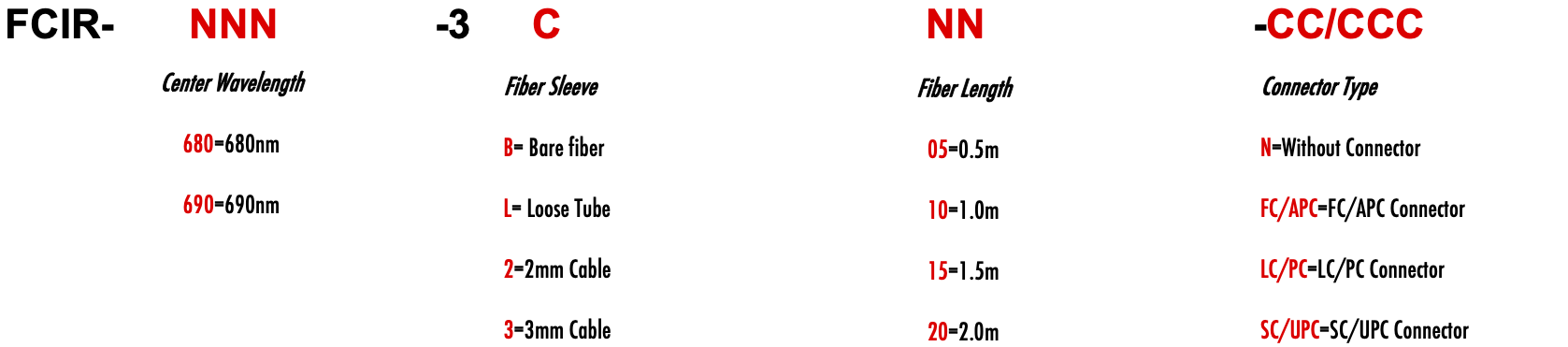

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
