690nm 3-port PM Optical Circulator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Circulator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Circulator will transmit the signal in a circular route. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPCR 690nm 660nm 670nm 680nm 700nm 665nm 675nm 685nm 695nm PM Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu PM630HP 4/125um 3/125um 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda FPCR 690nm 660nm 670nm 680nm 700nm 665nm 675nm 685nm 695nm PM Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu PM630HP 4/125um 3/125um 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda FPCR 690nm 660nm 670nm 680nm 700nm 665nm 675nm 685nm 695nm PM Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu PM630HP 4/125um 3/125um 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda F F3
TYPICAL SPECIFICATIONS
Center Wavelength 690nm
Insertion Loss <=2.0dB
Isolation >=17dB
Return Loss >=45dB
Extinction Ratio >=16dB
Work Mode S Type: Can only work in slow axis
F Type: Can work both in slow axis and fast axis
Fiber Type PM630-HP Fiber
Max. Optical Power (CW) 30mW
Operating Temperature 10~50degreeC

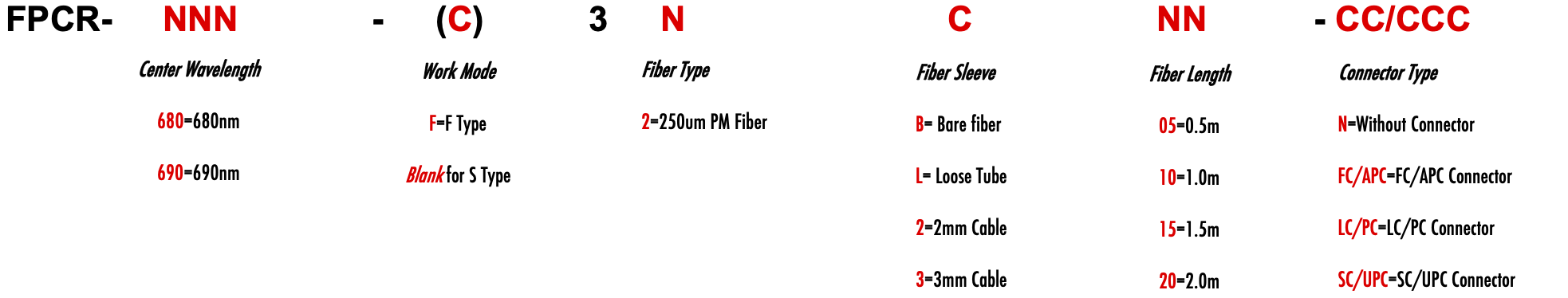

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
