690nm Multimode 3-port Optical Circulator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Circulator is made by micro-optics package technology with Multimode (MM) fiber in and MM fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Circulator will transmit the signal in a circular route. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCIR 690nm 660nm 670nm 680nm 700nm 665nm 675nm 685nm 695nm MM Multimode Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type FCIR 690nm 660nm 670nm 680nm 700nm 665nm 675nm 685nm 695nm MM Multimode Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type FCIR 690nm 660nm 670nm 680nm 700nm 665nm 675nm 685nm 695nm MM Multimode Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type 3
TYPICAL SPECIFICATIONS
Center Wavelength 690nm
Insertion Loss <=2.5dB
Isolation >=16dB
Return Loss >=25dB
Crosstalk >=25dB
Fiber Type 50/125um or 62.5/125um MM Fiber
50/125um OM3 MM Fiber
Max. Optical Power (CW) 30mW
Operating Temperature 10~50degreeC

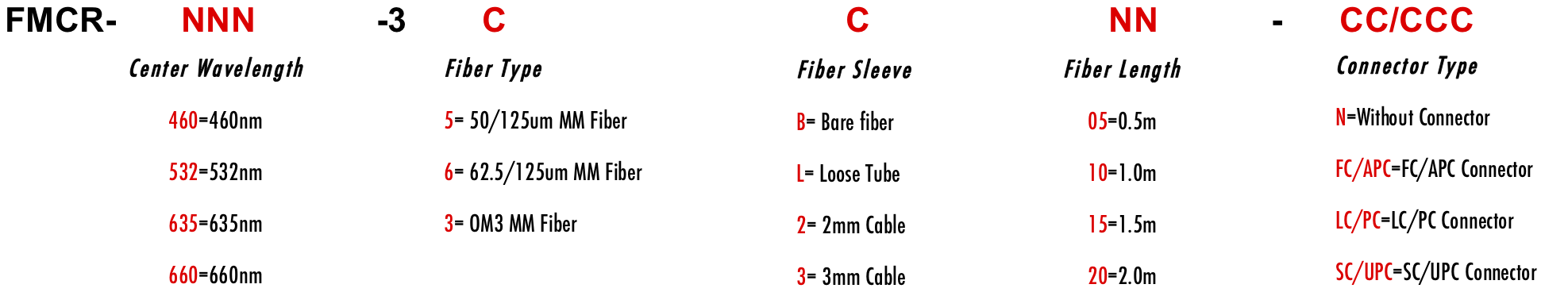

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
