1590nm Faraday Mirror with Phase Delay for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Faraday Mirror with Phase Delay is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and accurate rotation angle. The Faraday Mirror with Phase Delay will rotate the transmitted signal at certain angle, reflect backward and rotate again, the forward/backward signals will transmit through fast axis/slow axis of a waveplate that will induces the phase bias. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FRMD 1590nm 1570nm 1610nm 1580nm 1600nm 1605nm 1585nm 1595nm Faraday Mirror with Phase Delay Ritardo di Atraso Retraso de fase Retard phase Phasenverzögerung Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday tükör Ogledalo Oglinda peili ??????? ??????? Faraday peegel ???????? ???????. SMF-28 SMF28 PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FRMD 1590nm 1570nm 1610nm 1580nm 1600nm 1605nm 1585nm 1595nm Faraday Mirror with Phase Delay Ritardo di Atraso Retraso de fase Retard phase Phasenverzögerung Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday tükör Ogledalo Oglinda peili ??????? ??????? Faraday peegel ???????? ???????. SMF-28 SMF28 PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FRMD 1590nm 1570nm 1610nm 1580nm 1600nm 1605nm 1585nm 1595nm Faraday Mirror with Phase Delay Ritardo di Atraso Retraso de fase Retard phase Phasenverzögerung Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday tükör Ogledalo Oglinda peili ??????? ??????? Faraday peegel ???????? ???????. SMF-28 SMF28 PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP A1P A1S A2P A2S A4P A4S B1P B1S B2P B2S B4P B4S
TYPICAL SPECIFICATIONS
Center Wavelength 1590nm
Insertion Loss <=0.9dB
Faraday Rotation Angle, Single Pass (A: FR+WP+FR) 90degree (Slow axis in and Slow axis Out)
Faraday Rotation Angle, Single Pass (B: WP+FR) 45degree (Slow axis in and Fast axis Out)
Phase Delay pi, pi/2, pi/4 or specify
Rotation Angle Tolerance <=+/-3
PDL (SM Fiber Type) <=0.15dB
Extinction Ratio (PM Fiber Type) >=18dB
SM Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
PM Fiber Type PM1550 Fiber or 10/125um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~70degreeC

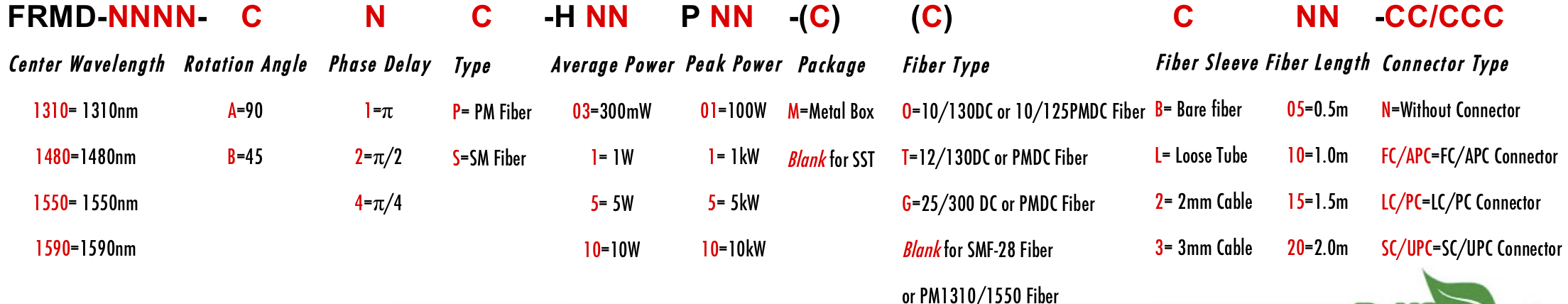

ORDERING INFORMATION/PART NUMBER(PN)
