915nm High Power Faraday Mirror for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Faraday Mirror is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and accurate rotation angle. The Faraday Mirror will rotate the transmitted signal at certain angle, reflect backward and rotate again. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFDM 915nm 900nm 910nm 920nm 930nm 905nm 906nm 925nm Faraday Mirror Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday tükör Ogledalo Oglinda peili ??????? ??????? Faraday peegel ???????? ???????. HI780 780HP PM850 PM980 PM780HP 5/125um 4/125um HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 30W 40W 50W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFDM 915nm 900nm 910nm 920nm 930nm 905nm 906nm 925nm Faraday Mirror Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday tükör Ogledalo Oglinda peili ??????? ??????? Faraday peegel ???????? ???????. HI780 780HP PM850 PM980 PM780HP 5/125um 4/125um HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 30W 40W 50W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFDM 915nm 900nm 910nm 920nm 930nm 905nm 906nm 925nm Faraday Mirror Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday tükör Ogledalo Oglinda peili ??????? ??????? Faraday peegel ???????? ???????. HI780 780HP PM850 PM980 PM780HP 5/125um 4/125um HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 30W 40W 50W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 225 90
TYPICAL SPECIFICATIONS
Center Wavelength 915nm
Insertion Loss <=1.8dB
Faraday Rotation Angle (Single Pass) 22.5degree, 45degree, 90degree
Rotation Angle Tolerance <=+/-5
PDL (SM Fiber Type) <=0.2dB
Extinction Ratio (PM Fiber Type) >=18dB
SM Fiber Type HI780 Fiber, HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
PM Fiber Type PM850 Fiber or PM980 Fiber
PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 30W, 40W, 50W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

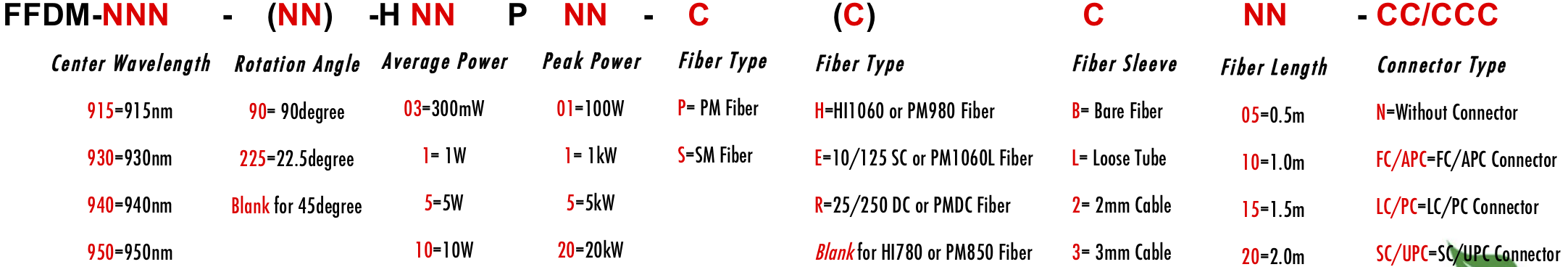

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:


Add to


Members of:

  • SPIE-The International Society for Optics and Photonics       OSA-The Optical Society



  • EPIC-European Photonics Industry Consortium       EOS-European Optical Society
