990nm High Power Faraday Mirror with Phase Delay

DESCRIPTION
Haphit provides fiber based passive components. The Faraday Mirror with Phase Delay is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and accurate rotation angle. The Faraday Mirror with Phase Delay will rotate the transmitted signal at certain angle, reflect backward and rotate again, the forward/backward signals will transmit through fast axis/slow axis of a waveplate that will induces the phase bias. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FRMD 990nm 980nm 982nm 983nm 985nm 986nm 995nm 996nm 997nm 1000nm Faraday Mirror with Phase Delay Ritardo di Atraso Retraso de fase Retard phase Phasenverzögerung Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday tükör Ogledalo Oglinda peili ??????? ??????? Faraday peegel ???????? ???????. HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 30W 40W 50W Watt Watts HP CW Continuous Wave FRMD 990nm 980nm 982nm 983nm 985nm 986nm 995nm 996nm 997nm 1000nm Faraday Mirror with Phase Delay Ritardo di Atraso Retraso de fase Retard phase Phasenverzögerung Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday tükör Ogledalo Oglinda peili ??????? ??????? Faraday peegel ???????? ???????. HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 30W 40W 50W  Watt Watts HP CW Continuous Wave FRMD 990nm 980nm 982nm 983nm 985nm 986nm 995nm 996nm 997nm 1000nm Faraday Mirror with Phase Delay Ritardo di Atraso Retraso de fase Retard phase Phasenverzögerung Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday tükör Ogledalo Oglinda peili ??????? ??????? Faraday peegel ???????? ???????. HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 30W 40W 50W  Watt Watts HP CW Continuous Wave A1P A1S A2P A2S A4P A4S B1P B1S B2P B2S B4P B4S
TYPICAL SPECIFICATIONS
Center Wavelength 990nm
Insertion Loss <=1.5dB
Faraday Rotation Angle, Single Pass (A: FR+WP+FR) 90degree (Slow axis in and Slow axis Out)
Faraday Rotation Angle, Single Pass (B: WP+FR) 45degree (Slow axis in and Fast axis Out)
Phase Delay pi, pi/2, pi/4 or specify
Rotation Angle Tolerance <=+/-5
PDL (SM Fiber Type) <=0.2dB
Extinction Ratio (PM Fiber Type) >=18dB
SM Fiber Type HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
PM Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 30W, 40W, 50W
Operating Temperature 0~50degreeC

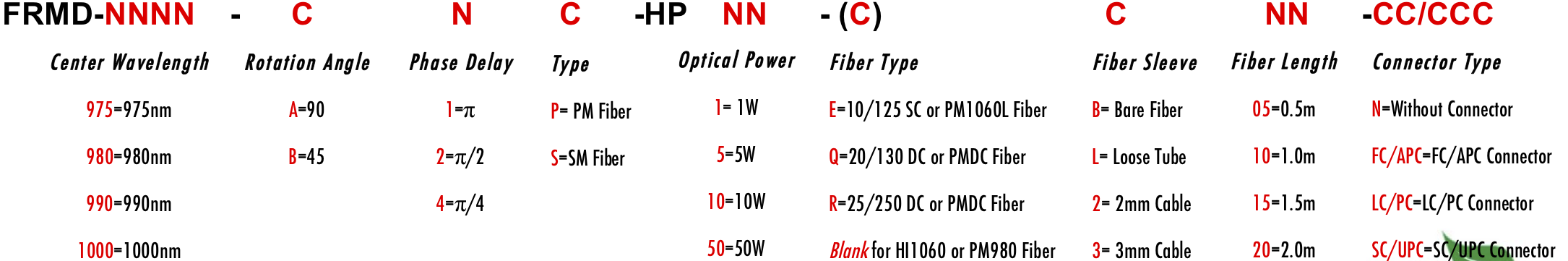

ORDERING INFORMATION/PART NUMBER(PN)
