532nm Faraday Mirror
DESCRIPTION
Haphit provides fiber based passive components. The Faraday Mirror is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and accurate rotation angle. The Faraday Mirror will rotate the transmitted signal at certain angle, reflect backward and rotate again. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFDM 532nm 500nm 600nm 510nm 520nm 530nm 540nm 550nm 560nm 570nm 580nm Faraday Mirror Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday tükör Ogledalo Oglinda peili ??????? ??????? Faraday peegel ???????? ???????. 460HP 460-HP 3/125um 4/125um PM460HP PM460-HP SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FFDM 532nm 500nm 600nm 510nm 520nm 530nm 540nm 550nm 560nm 570nm 580nm Faraday Mirror Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday tükör Ogledalo Oglinda peili ??????? ??????? Faraday peegel ???????? ???????. 460HP 460-HP 3/125um 4/125um PM460HP PM460-HP SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FFDM 532nm 500nm 600nm 510nm 520nm 530nm 540nm 550nm 560nm 570nm 580nm Faraday Mirror Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday tükör Ogledalo Oglinda peili ??????? ??????? Faraday peegel ???????? ???????. 460HP 460-HP 3/125um 4/125um PM460HP PM460-HP SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda 225 90
TYPICAL SPECIFICATIONS
Center Wavelength 532nm
Insertion Loss <=2.2dB
Faraday Rotation Angle (Single Pass) 45degree, 90degree
Rotation Angle Tolerance <=+/-3
PDL (SM Fiber Type) <=0.2dB
Extinction Ratio (PM Fiber Type) >=18dB
SM Fiber Type 460-HP Fiber
PM Fiber Type PM460-HP Fiber
Max. Optical Power (CW) 25mW
Operating Temperature 0~50degreeC

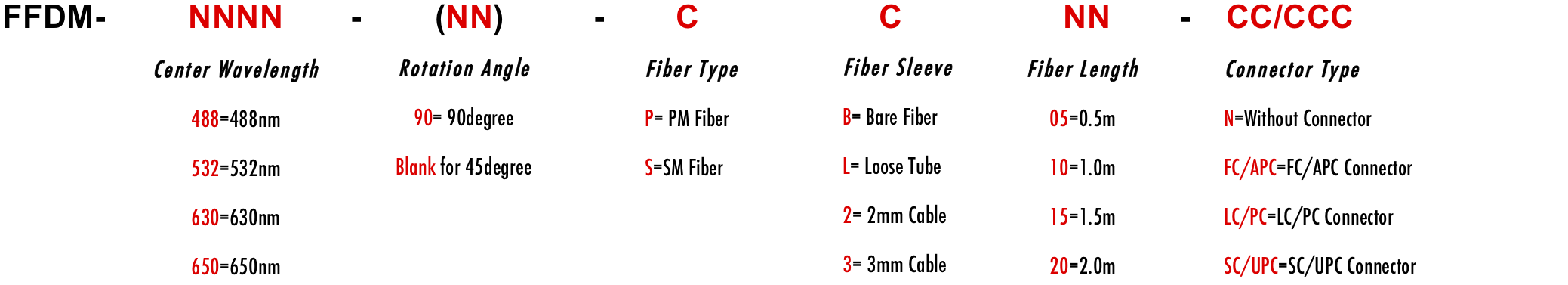

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
