690nm Faraday Mirror

DESCRIPTION
Haphit provides fiber based passive components. The Faraday Mirror is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and accurate rotation angle. The Faraday Mirror will rotate the transmitted signal at certain angle, reflect backward and rotate again. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFDM 690nm 660nm 670nm 680nm 700nm 665nm 675nm 685nm 695nm Faraday Mirror Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday tükör Ogledalo Oglinda peili ??????? ??????? Faraday peegel ???????? ???????. 630HP 630-HP 3/125um 4/125um PM630HP PM630-HP SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FFDM 690nm 660nm 670nm 680nm 700nm 665nm 675nm 685nm 695nm Faraday Mirror Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday tükör Ogledalo Oglinda peili ??????? ??????? Faraday peegel ???????? ???????. 630HP 630-HP 3/125um 4/125um PM630HP PM630-HP SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FFDM 690nm 660nm 670nm 680nm 700nm 665nm 675nm 685nm 695nm Faraday Mirror Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday tükör Ogledalo Oglinda peili ??????? ??????? Faraday peegel ???????? ???????. 630HP 630-HP 3/125um 4/125um PM630HP PM630-HP SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda 225 90
TYPICAL SPECIFICATIONS
Center Wavelength 690nm
Insertion Loss <=2.2dB
Faraday Rotation Angle (Single Pass) 45degree, 90degree
Rotation Angle Tolerance <=+/-3
PDL (SM Fiber Type) <=0.2dB
Extinction Ratio (PM Fiber Type) >=18dB
SM Fiber Type 630-HP Fiber
PM Fiber Type PM630-HP Fiber
Max. Optical Power (CW) 25mW
Operating Temperature 0~50degreeC

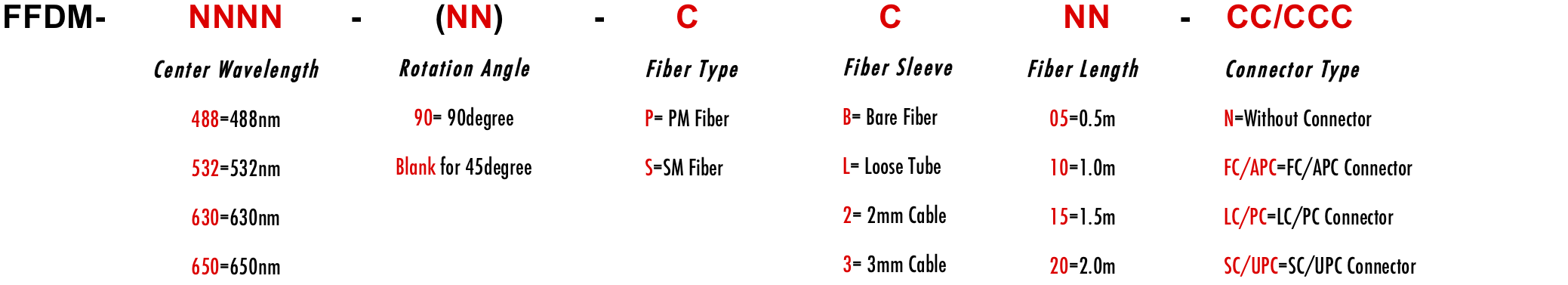

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
