1040nm Partial Ref. Faraday Mirror (PRM)

DESCRIPTION
Haphit provides fiber based passive components. The Partial Reflective Faraday Mirror (PRM) is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and accurate rotation angle. The Partial Reflective Faraday Mirror will rotate the transmitted signal at certain angle, simultaneously reflect a partial percentage of light back into input port. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFPM 1040nm 1030nm 1050nm 1036nm 1035nm 1045nm 1046nm 1041nm 1042nm Partial Reflective Faraday Mirror Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FFPM 1040nm 1030nm 1050nm 1036nm 1035nm 1045nm 1046nm 1041nm 1042nm Partial Reflective Faraday Mirror Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FFPM 1040nm 1030nm 1050nm 1036nm 1035nm 1045nm 1046nm 1041nm 1042nm Partial Reflective Faraday Mirror Polarization Insensitive miroir MirrorName espejo Mirror di Faraday Espelho de Faraday HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda BSS BPP BPS BSP 0190 0290 0390 0490 0590 0690 0790 0890 0990 1090 1190 1290 1390 1490 1590 1690 1790 1890 1990 2090 2190 2290 2390 2490 2590 2690 2790 2890 2990 3090 3190 3290 3390 3490 3590 3690 3790 3890 3990 4090 4190 4290 4390 4490 4590 4690 4790 4890 4990 5090 5190 5290 5390 5490 5590 5690 5790 5890 5990 6090 6190 6290 6390 6490 6590 6690 6790 6890 6990 7090 7190 7290 7390 7490 7590 7690 7790 7890 7990 8090 8190 8290 8390 8490 8590 8690 8790 8890 8990 9090 9190 9290 9390 9490 9590 9690 9790 9890 9990 01225 02225 03225 04225 05225 06225 07225 08225 09225 10225 11225 12225 13225 14225 15225 16225 17225 18225 19225 20225 21225 22225 23225 24225 25225 26225 27225 28225 29225 30225 31225 32225 33225 34225 35225 36225 37225 38225 39225 40225 41225 42225 43225 44225 45225 46225 47225 48225 49225 50225 51225 52225 53225 54225 55225 56225 57225 58225 59225 60225 61225 62225 63225 64225 65225 66225 67225 68225 69225 70225 71225 72225 73225 74225 75225 76225 77225 78225 79225 80225 81225 82225 83225 84225 85225 86225 87225 88225 89225 90225 91225 92225 93225 94225 95225 96225 97225 98225 99225
TYPICAL SPECIFICATIONS
Center Wavelength 1040nm
Excess Loss <=5.6dB
Nominal Reflective Ratio 1%, 2%, 5%, 10%, 20%, 50%, 80%, 90%
Faraday Rotation Angle (Transmission) 22.5degree, 45degree, 90degree
Rotation Angle Tolerance <=+/-5
Faraday Position Forward: Faraday is before the Mirror
Backward: Faraday is after the Mirror
PDL (SM Fiber Type) <=0.25dB
Extinction Ratio (PM Fiber Type) >=20dB
SM Fiber Type HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
PM Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 50mW
Operating Temperature 0~50degreeC

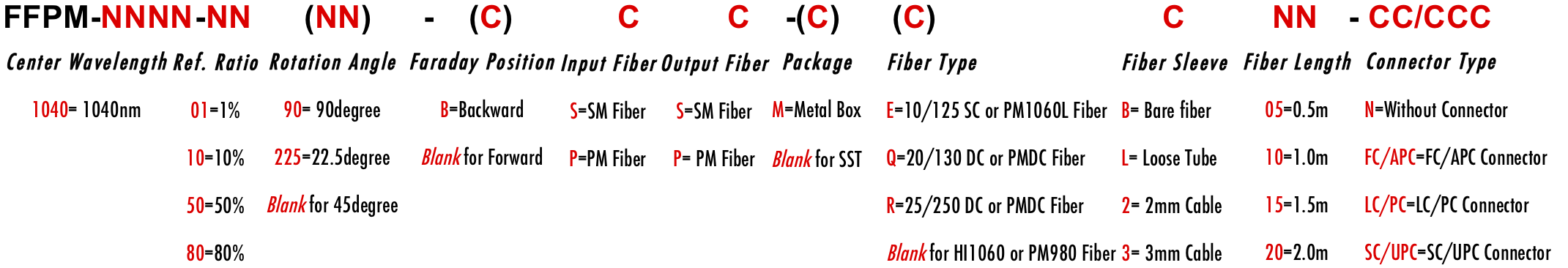

ORDERING INFORMATION/PART NUMBER(PN)
