	1310nm High Power Inline Faraday Rotator

DESCRIPTION

Haphit provides fiber based passive components. The Inline Faraday Rotator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and accurate rotation angle. The Inline Faraday Rotator will rotate the transmitted linear polarized signal at a certain angle on Faraday Effect. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.

FIFR 1310nm 1290nm 1330nm 1300nm 1320nm 1304nm 1305nm 1315nm 1311nm Inline Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics drehen optische faseroptische Photonik Unempfindliche A rotação insensível da polarização do rotador de gira da fibra óptica Rotador Faraday en línea Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica en ligne insensible à la fibre optique Photonique optique -polarisaatio Huomaton kierto kiertää optista kuituoptista fotoniikkaa SMF-28 SMF28 PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W Watt Watts HP CW Continuous Wave FIFR 1310nm 1290nm 1330nm 1300nm 1320nm 1304nm 1305nm 1315nm 1311nm Inline Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics drehen optische faseroptische Photonik Unempfindliche A rotação insensível da polarização do rotador de gira da fibra óptica Rotador Faraday en línea Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica en ligne insensible à la fibre optique Photonique optique -polarisaatio Huomaton kierto kiertää optista kuituoptista fotoniikkaa SMF-28 SMF28 PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W Watt Watts HP CW Continuous Wave FIFR 1310nm 1290nm 1330nm 1300nm 1320nm 1304nm 1305nm 1315nm 1311nm Inline Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics drehen optische faseroptische Photonik Unempfindliche A rotação insensível da polarização do rotador de gira da fibra óptica Rotador Faraday en línea Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica en ligne insensible à la fibre optique Photonique optique -polarisaatio Huomaton kierto kiertää optista kuituoptista fotoniikkaa SMF-28 SMF28 PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W Watt Watts HP CW Continuous Wave 225SS 225PP 225SP 225PS 90SS 90PP 90SP 90PS

TYPICAL SPECIFICATIONS

Center Wavelength	1310nm
Insertion Loss	<=1.0dB
Faraday Rotation Angle	22.5degree, 45degree, 90degree
Return Loss	>=50dB
PDL (SM Fiber Type)	<=0.15dB
Extinction Ratio (PM Fiber Type)	>=18dB
SM Fiber Type	SMF-28 Fiber or 10/130um DC Fiber 12/130um DC Fiber or 20/130um DC Fiber 25/250um DC Fiber or 25/300um DC Fiber
PM Fiber Type	PM1310 Fiber or 10/125um PMDC Fiber 12/130um PMDC Fiber or 20/130um PMDC Fiber 25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Optical Power (CW)	1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature	0~70degreeC

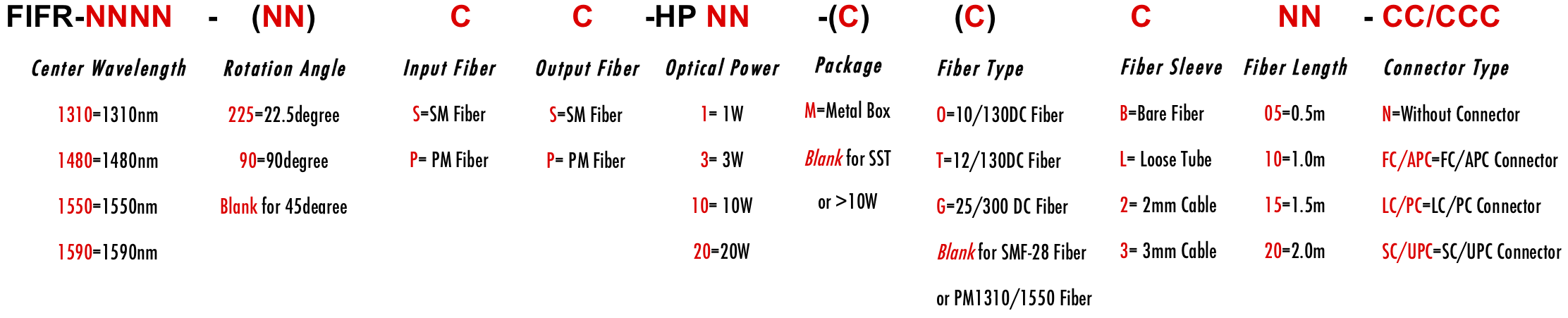

ORDERING INFORMATION/PART NUMBER(PN)
