1064nm Free Space Faraday Rotator

DESCRIPTION
Haphit provides fiber based passive components. The Free Space Faraday Rotator is made by micro-optics package technology with free space in and free space out. It features Wide Spectrum and accurate rotation angle. The Free Space Faraday Rotator will rotate the transmitted linear polarized signal at a certain angle on Faraday Effect. Various wavelength range are available, customized on wavelength range and size are also available on request.
FFDR 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm Free Space Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics Freiraum Unempfindliche Optische Faseroptische Photonik Espace libre insensible à la fibre optique photonique Espaço livre Polarização Rotação insensível girar Fotônica de fibra óptica Espacio libre Rotador de Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica Vapaa tila Faraday-rotaattorin polarisaatioherkkä rotaatio kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um MM 50/125um 62.5/125um 105/125um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FFDR 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm Free Space Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics Freiraum Unempfindliche Optische Faseroptische Photonik Espace libre insensible à la fibre optique photonique Espaço livre Polarização Rotação insensível girar Fotônica de fibra óptica Espacio libre Rotador de Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica Vapaa tila Faraday-rotaattorin polarisaatioherkkä rotaatio kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um MM 50/125um 62.5/125um 105/125um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FFDR 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm Free Space Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics Freiraum Unempfindliche Optische Faseroptische Photonik Espace libre insensible à la fibre optique photonique Espaço livre Polarização Rotação insensível girar Fotônica de fibra óptica Espacio libre Rotador de Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica Vapaa tila Faraday-rotaattorin polarisaatioherkkä rotaatio kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um MM 50/125um 62.5/125um 105/125um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda 90 22.5 08 30X39
TYPICAL SPECIFICATIONS
Center Wavelength 1064nm
Insertion Loss <=1.5dB
Faraday Rotation Angle 22.5degree, 45degree, 90degree
Rotation Angle Tolerance <=+/-3degree
Clear Aperture 0.8mm
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

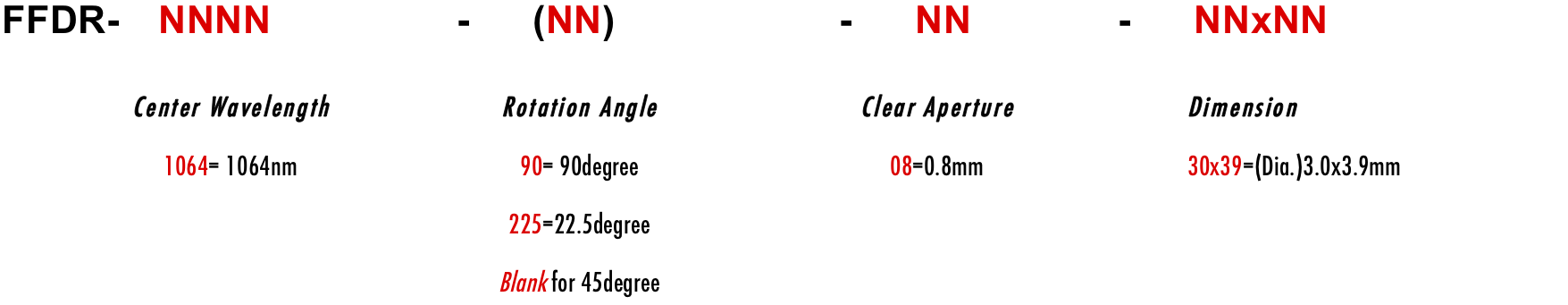

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
