1064nm Inline Faraday Rotator with Phase Bias for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Inline Faraday Rotator with Phase Bias is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and accurate rotation angle. The Inline Faraday Rotator with Phase Bias will rotate the transmitted linear polarized signal at a certain angle on Faraday Effect, the forward/backward signals will transmit through fast axis/slow axis of a waveplate that will induces the phase bias between forward and backward signals. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FRPB 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm Inline Faraday Rotator with Phase Bias Phasenvorspannung Vaihepoikkeama Biais de phase Sesgo fase Viés Polarizzazione di Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics drehen optische faseroptische Photonik Unempfindliche A rotação insensível da polarização do rotador de gira da fibra óptica Rotador Faraday en línea Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica en ligne insensible à la fibre optique Photonique optique -polarisaatio Huomaton kierto kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 300mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FRPB 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm Inline Faraday Rotator with Phase Bias Phasenvorspannung Vaihepoikkeama Biais de phase Sesgo fase Viés Polarizzazione di Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics drehen optische faseroptische Photonik Unempfindliche A rotação insensível da polarização do rotador de gira da fibra óptica Rotador Faraday en línea Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica en ligne insensible à la fibre optique Photonique optique -polarisaatio Huomaton kierto kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 300mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FRPB 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm Inline Faraday Rotator with Phase Bias Phasenvorspannung Vaihepoikkeama Biais de phase Sesgo fase Viés Polarizzazione di Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics drehen optische faseroptische Photonik Unempfindliche A rotação insensível da polarização do rotador de gira da fibra óptica Rotador Faraday en línea Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica en ligne insensible à la fibre optique Photonique optique -polarisaatio Huomaton kierto kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 300mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP A1SS A1SP A1PS A1PP A2SS A2SP A2PS A2PP A4SS A4SP A4PS A4PP B1SS B1SP B1PS B1PP B2SS B2SP B2PS B2PP B4SS B4SP B4PS B4PP A1RSS A1RSP A1RPS A1RPP A2RSS A2RSP A2RPS A2RPP A4RSS A4RSP A4RPS A4RPP B1RSS B1RSP B1RPS B1RPP B2RSS B2RSP B2RPS B2RPP B4RSS B4RSP B4RPS B4RPP
TYPICAL SPECIFICATIONS
Center Wavelength 1064nm
Insertion Loss <=1.9dB (Type B), <=3.4dB (Type A)
Rotation Angle (A: FR+WP+FR) 90degree (Backward Signal to Slow axis of Input Fiber)
Rotation Angle (B: WP+FR) 45degree (Backward Signal to Fast axis of Input Fiber)
Phase Bias between Forward and Backward pi, pi/2, pi/4 or specify
Return Loss >=50dB
PDL (SM Fiber Type) <=0.15dB
Extinction Ratio (PM Fiber Type) Standard: >=18dB
High ER Type: >=20dB (Can only work in Slow Axis)
SM Fiber Type HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
PM Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Average Power 300mW
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

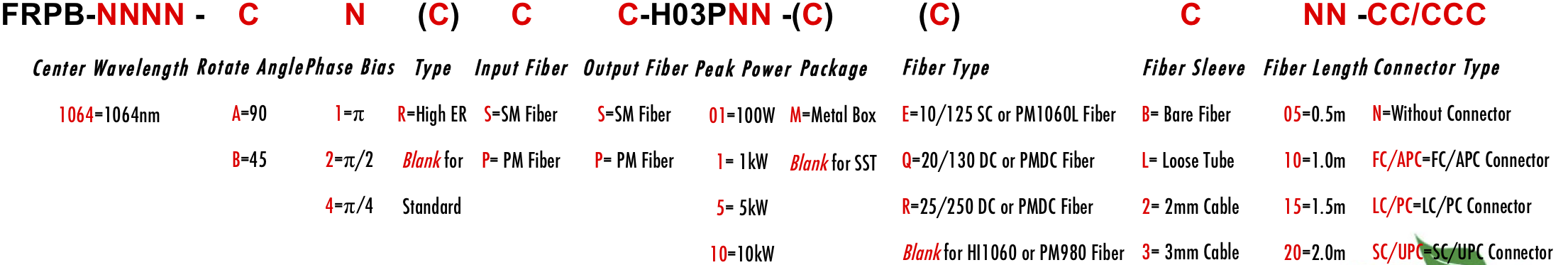

ORDERING INFORMATION/PART NUMBER(PN)
