1064nm High Power Inline Faraday Rotator with Phase Bias

DESCRIPTION
Haphit provides fiber based passive components. The Inline Faraday Rotator with Phase Bias is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and accurate rotation angle. The Inline Faraday Rotator with Phase Bias will rotate the transmitted linear polarized signal at a certain angle on Faraday Effect, the forward/backward signals will transmit through fast axis/slow axis of a waveplate that will induces the phase bias between forward and backward signals. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FRPB 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm Inline Faraday Rotator with Phase Bias Phasenvorspannung Vaihepoikkeama Biais de phase Sesgo fase Viés Polarizzazione di Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics drehen optische faseroptische Photonik Unempfindliche A rotação insensível da polarização do rotador de gira da fibra óptica Rotador Faraday en línea Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica en ligne insensible à la fibre optique Photonique optique -polarisaatio Huomaton kierto kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W  Watt Watts HP CW Continuous Wave FRPB 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm Inline Faraday Rotator with Phase Bias Phasenvorspannung Vaihepoikkeama Biais de phase Sesgo fase Viés Polarizzazione di Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics drehen optische faseroptische Photonik Unempfindliche A rotação insensível da polarização do rotador de gira da fibra óptica Rotador Faraday en línea Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica en ligne insensible à la fibre optique Photonique optique -polarisaatio Huomaton kierto kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W  Watt Watts HP CW Continuous Wave FRPB 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm Inline Faraday Rotator with Phase Bias Phasenvorspannung Vaihepoikkeama Biais de phase Sesgo fase Viés Polarizzazione di Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics drehen optische faseroptische Photonik Unempfindliche A rotação insensível da polarização do rotador de gira da fibra óptica Rotador Faraday en línea Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica en ligne insensible à la fibre optique Photonique optique -polarisaatio Huomaton kierto kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W  Watt Watts HP CW Continuous Wave A1SS A1SP A1PS A1PP A2SS A2SP A2PS A2PP A4SS A4SP A4PS A4PP B1SS B1SP B1PS B1PP B2SS B2SP B2PS B2PP B4SS B4SP B4PS B4PP A1RSS A1RSP A1RPS A1RPP A2RSS A2RSP A2RPS A2RPP A4RSS A4RSP A4RPS A4RPP B1RSS B1RSP B1RPS B1RPP B2RSS B2RSP B2RPS B2RPP B4RSS B4RSP B4RPS B4RPP C1SS C1SP C1PS C1PP C2SS C2SP C2PS C2PP C4SS C4SP C4PS C4PP C1RSS C1RSP C1RPS C1RPP C2RSS C2RSP C2RPS C2RPP C4RSS C4RSP C4RPS C4RPP
TYPICAL SPECIFICATIONS
Center Wavelength 1064nm
Insertion Loss <=1.5dB
Rotation Angle (A&C: FR+WP+FR) 90degree (Backward Signal to Slow axis of Input Fiber)
Rotation Angle (B: WP+FR) 45degree (Backward Signal to Fast axis of Input Fiber)
Phase Bias between Forward and Backward pi, pi/2, pi/4 or specify
Return Loss >=50dB
PDL (SM Fiber Type) <=0.2dB
Extinction Ratio (PM Fiber Type) Standard: >=18dB
High ER Type: >=20dB (Can only work in Slow Axis)
SM Fiber Type HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
PM Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 30W, 40W, 50W
Operating Temperature 0~50degreeC

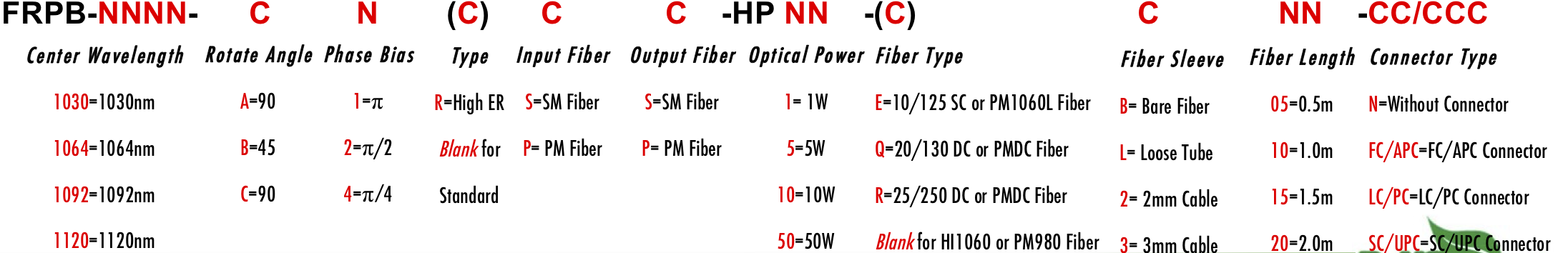

ORDERING INFORMATION/PART NUMBER(PN)
