1070nm Inline Faraday Rotator for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Inline Faraday Rotator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and accurate rotation angle. The Inline Faraday Rotator will rotate the transmitted linear polarized signal at a certain angle on Faraday Effect. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FIFR 1070nm 1060nm 1080nm 1075nm 1065nm 1071nm 1072nm 1073nm 1067nm 1068nm 1069nm Inline Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics drehen optische faseroptische Photonik Unempfindliche A rotação insensível da polarização do rotador de gira da fibra óptica Rotador Faraday en línea Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica en ligne insensible à la fibre optique Photonique optique -polarisaatio Huomaton kierto kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 300mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FIFR 1070nm 1060nm 1080nm 1075nm 1065nm 1071nm 1072nm 1073nm 1067nm 1068nm 1069nm Inline Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics drehen optische faseroptische Photonik Unempfindliche A rotação insensível da polarização do rotador de gira da fibra óptica Rotador Faraday en línea Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica en ligne insensible à la fibre optique Photonique optique -polarisaatio Huomaton kierto kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 300mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FIFR 1070nm 1060nm 1080nm 1075nm 1065nm 1071nm 1072nm 1073nm 1067nm 1068nm 1069nm Inline Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics drehen optische faseroptische Photonik Unempfindliche A rotação insensível da polarização do rotador de gira da fibra óptica Rotador Faraday en línea Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica en ligne insensible à la fibre optique Photonique optique -polarisaatio Huomaton kierto kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 300mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 225SS 225PP 225SP 225PS 90SS 90PP 90SP 90PS
TYPICAL SPECIFICATIONS
Center Wavelength 1070nm
Insertion Loss <=1.9dB
Faraday Rotation Angle 22.5degree, 45degree, 90degree
Return Loss >=50dB
PDL (SM Fiber Type) <=0.2dB
Extinction Ratio (PM Fiber Type) >=18dB
SM Fiber Type HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
PM Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Average Power 300mW
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

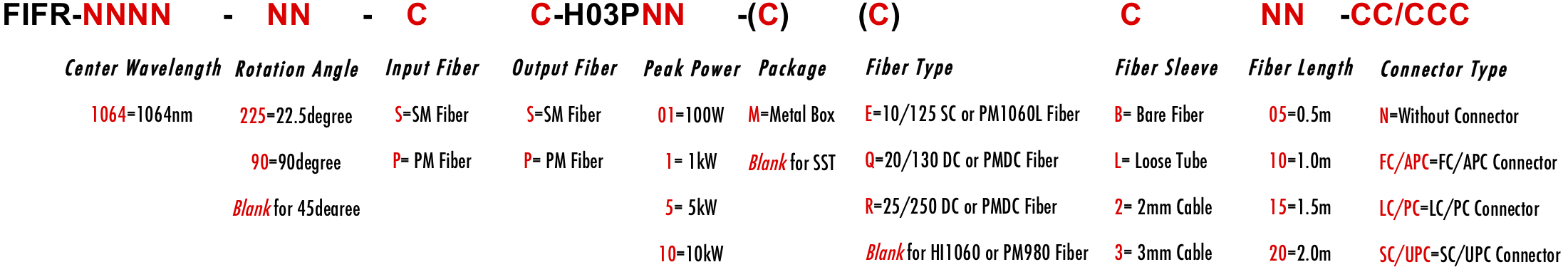

ORDERING INFORMATION/PART NUMBER(PN)
