1070nm High Power Inline Faraday Rotator

DESCRIPTION
Haphit provides fiber based passive components. The Inline Faraday Rotator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and accurate rotation angle. The Inline Faraday Rotator will rotate the transmitted linear polarized signal at a certain angle on Faraday Effect. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FIFR 1070nm 1060nm 1080nm 1075nm 1065nm 1071nm 1072nm 1073nm 1067nm 1068nm 1069nm Inline Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics drehen optische faseroptische Photonik Unempfindliche A rotação insensível da polarização do rotador de gira da fibra óptica Rotador Faraday en línea Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica en ligne insensible à la fibre optique Photonique optique -polarisaatio Huomaton kierto kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W  Watt Watts HP CW Continuous Wave FIFR 1070nm 1060nm 1080nm 1075nm 1065nm 1071nm 1072nm 1073nm 1067nm 1068nm 1069nm Inline Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics drehen optische faseroptische Photonik Unempfindliche A rotação insensível da polarização do rotador de gira da fibra óptica Rotador Faraday en línea Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica en ligne insensible à la fibre optique Photonique optique -polarisaatio Huomaton kierto kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W  Watt Watts HP CW Continuous Wave FIFR 1070nm 1060nm 1080nm 1075nm 1065nm 1071nm 1072nm 1073nm 1067nm 1068nm 1069nm Inline Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics drehen optische faseroptische Photonik Unempfindliche A rotação insensível da polarização do rotador de gira da fibra óptica Rotador Faraday en línea Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica en ligne insensible à la fibre optique Photonique optique -polarisaatio Huomaton kierto kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W  Watt Watts HP CW Continuous Wave 225SS 225PP 225SP 225PS 90SS 90PP 90SP 90PS
TYPICAL SPECIFICATIONS
Center Wavelength 1070nm
Insertion Loss <=1.5dB
Faraday Rotation Angle 22.5degree, 45degree, 90degree
Return Loss >=50dB
PDL (SM Fiber Type) <=0.2dB
Extinction Ratio (PM Fiber Type) >=18dB
SM Fiber Type HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
PM Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 30W, 40W, 50W
Operating Temperature 0~50degreeC

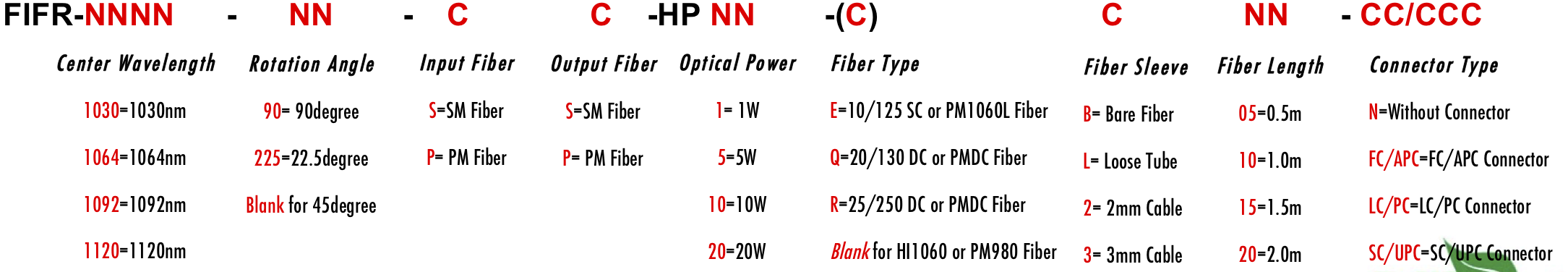

ORDERING INFORMATION/PART NUMBER(PN)
