1070nm High Power Free Space Faraday Rotator

DESCRIPTION
Haphit provides fiber based passive components. The Free Space Faraday Rotator is made by micro-optics package technology with free space in and free space out. It features Wide Spectrum and accurate rotation angle. The Free Space Faraday Rotator will rotate the transmitted linear polarized signal at a certain angle on Faraday Effect. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range are available, customized on wavelength range and size are also available on request.
FFDR 1070nm 1060nm 1080nm 1075nm 1065nm 1071nm 1072nm 1073nm 1067nm 1068nm 1069nm Free Space Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics Freiraum Unempfindliche Optische Faseroptische Photonik Espace libre insensible à la fibre optique photonique Espaço livre Polarização Rotação insensível girar Fotônica de fibra óptica Espacio libre Rotador de Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica Vapaa tila Faraday-rotaattorin polarisaatioherkkä rotaatio kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um MM 50/125um 62.5/125um 105/125um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W  Watt Watts HP CW Continuous Wave FFDR 1070nm 1060nm 1080nm 1075nm 1065nm 1071nm 1072nm 1073nm 1067nm 1068nm 1069nm Free Space Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics Freiraum Unempfindliche Optische Faseroptische Photonik Espace libre insensible à la fibre optique photonique Espaço livre Polarização Rotação insensível girar Fotônica de fibra óptica Espacio libre Rotador de Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica Vapaa tila Faraday-rotaattorin polarisaatioherkkä rotaatio kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um MM 50/125um 62.5/125um 105/125um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W  Watt Watts HP CW Continuous Wave FFDR 1070nm 1060nm 1080nm 1075nm 1065nm 1071nm 1072nm 1073nm 1067nm 1068nm 1069nm Free Space Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics Freiraum Unempfindliche Optische Faseroptische Photonik Espace libre insensible à la fibre optique photonique Espaço livre Polarização Rotação insensível girar Fotônica de fibra óptica Espacio libre Rotador de Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica Vapaa tila Faraday-rotaattorin polarisaatioherkkä rotaatio kiertää optista kuituoptista fotoniikkaa HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um MM 50/125um 62.5/125um 105/125um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W  Watt Watts HP CW Continuous Wave 90 22.5 20HH 20HV 20HQ 20VH 20VV 20VQ 30HH 30HV 30HQ 30VH 30VV 30VQ 50HH 50HV 50HQ 50VH 50VV 50VQ
TYPICAL SPECIFICATIONS
Center Wavelength 1070nm
Insertion Loss@23degree <=0.7dB
Faraday Rotation Angle 22.5degree, 45degree, 90degree
Rotation Angle Tolerance <=+/-5degree
Clear Aperture 2mm, 3mm, 5mm
Max. Optical Power (CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 30W, 40W, 50W, 60W, 80W, 100W
Operating Temperature 0~50degreeC

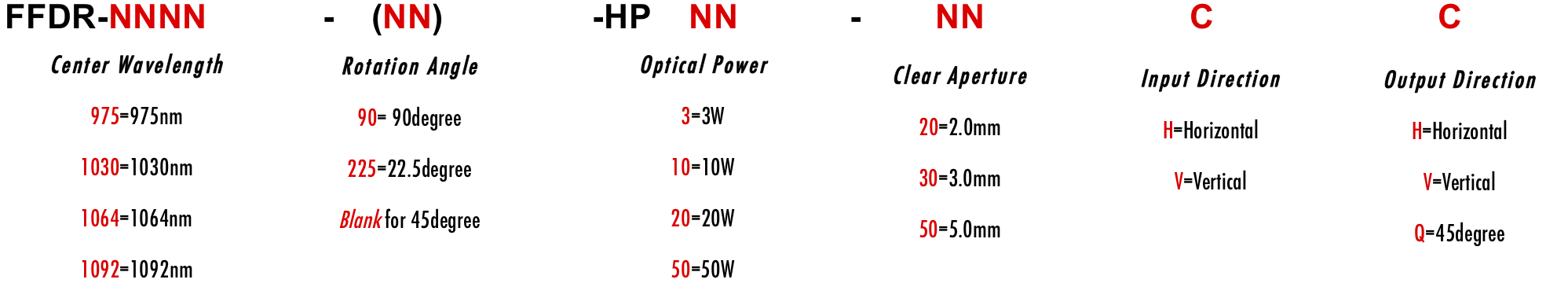

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
