950nm High Power Free Space Faraday Rotator for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Free Space Faraday Rotator is made by micro-optics package technology with free space in and free space out. It features Wide Spectrum and accurate rotation angle. The Free Space Faraday Rotator will rotate the transmitted linear polarized signal at a certain angle on Faraday Effect. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range are available, customized on wavelength range and size are also available on request.
FFDR 950nm 940nm 960nm 945nm 946nm 955nm 956nm 952nm Free Space Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics Freiraum Unempfindliche Optische Faseroptische Photonik Espace libre insensible à la fibre optique photonique Espaço livre Polarização Rotação insensível girar Fotônica de fibra óptica Espacio libre Rotador de Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica Vapaa tila Faraday-rotaattorin polarisaatioherkkä rotaatio kiertää optista kuituoptista fotoniikkaa HI780 780HP PM850 PM980 PM780HP 5/125um 4/125um HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um MM 50/125um 62.5/125um 105/125um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 30W 40W 50W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFDR 950nm 940nm 960nm 945nm 946nm 955nm 956nm 952nm Free Space Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics Freiraum Unempfindliche Optische Faseroptische Photonik Espace libre insensible à la fibre optique photonique Espaço livre Polarização Rotação insensível girar Fotônica de fibra óptica Espacio libre Rotador de Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica Vapaa tila Faraday-rotaattorin polarisaatioherkkä rotaatio kiertää optista kuituoptista fotoniikkaa HI780 780HP PM850 PM980 PM780HP 5/125um 4/125um HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um MM 50/125um 62.5/125um 105/125um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 30W 40W 50W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFDR 950nm 940nm 960nm 945nm 946nm 955nm 956nm 952nm Free Space Faraday Rotator Polarization Insensitive Rotation rotate Optical Fiber Optic Photonics Freiraum Unempfindliche Optische Faseroptische Photonik Espace libre insensible à la fibre optique photonique Espaço livre Polarização Rotação insensível girar Fotônica de fibra óptica Espacio libre Rotador de Polarización Rotación insensible rotar Fibra óptica Fibra óptica Fotónica Vapaa tila Faraday-rotaattorin polarisaatioherkkä rotaatio kiertää optista kuituoptista fotoniikkaa HI780 780HP PM850 PM980 PM780HP 5/125um 4/125um HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um MM 50/125um 62.5/125um 105/125um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 30W 40W 50W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 90 22.5 20HH 20HV 20HQ 20VH 20VV 20VQ 30HH 30HV 30HQ 30VH 30VV 30VQ 50HH 50HV 50HQ 50VH 50VV 50VQ
TYPICAL SPECIFICATIONS
Center Wavelength 950nm
Insertion Loss@23degree <=0.7dB
Faraday Rotation Angle 22.5degree, 45degree, 90degree
Rotation Angle Tolerance <=+/-5degree
Clear Aperture 2mm, 3mm, 5mm
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 30W, 40W, 50W, 30W, 40W, 50W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

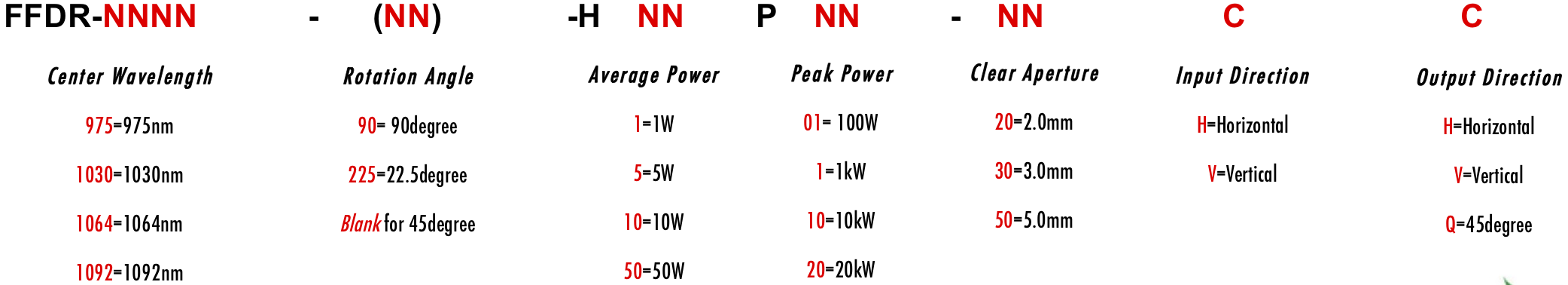

ORDERING INFORMATION/PART NUMBER(PN)
