1480nm Fiber Mirror for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Fiber Mirror is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and High Reliability. The Fiber Mirror will reflect the transmitted signal backward to input fiber. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFMR 1480nm 1450nm 1460nm 1470nm 1490nm 1500nm Fiber Mirror Polarization Insensitive Faserspiegelpolarisation unempfindlich Insensible à la polarisation du miroir de fibre Fibra espejo polarización insensible Polarização de espelho de fibra insensível Polarizzazione della fibra dello specchio insensibile Kuitupeilin polarisaatio ei ole herkkä SMF-28 SMF28 PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFMR 1480nm 1450nm 1460nm 1470nm 1490nm 1500nm Fiber Mirror Polarization Insensitive Faserspiegelpolarisation unempfindlich Insensible à la polarisation du miroir de fibre Fibra espejo polarización insensible Polarização de espelho de fibra insensível Polarizzazione della fibra dello specchio insensibile Kuitupeilin polarisaatio ei ole herkkä SMF-28 SMF28 PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFMR 1480nm 1450nm 1460nm 1470nm 1490nm 1500nm Fiber Mirror Polarization Insensitive Faserspiegelpolarisation unempfindlich Insensible à la polarisation du miroir de fibre Fibra espejo polarización insensible Polarização de espelho de fibra insensível Polarizzazione della fibra dello specchio insensibile Kuitupeilin polarisaatio ei ole herkkä SMF-28 SMF28 PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP
TYPICAL SPECIFICATIONS
Center Wavelength 1480nm
Insertion Loss <=0.8dB
PDL (SM Fiber Type) <=0.1dB
Extinction Ratio (PM Fiber Type) >=18dB
SM Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
PM Fiber Type PM1310 Fiber or 10/125um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~70degreeC

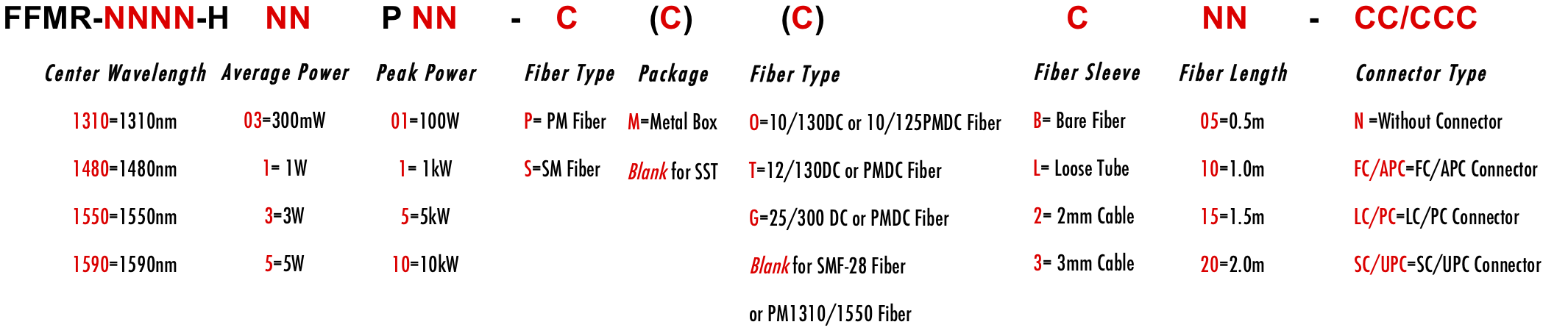

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
