830nm Fiber Mirror
DESCRIPTION
Haphit provides fiber based passive components. The Fiber Mirror is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and High Reliability. The Fiber Mirror will reflect the transmitted signal backward to input fiber. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFMR 830nm 820nm 840nm 825nm 835nm 836nm Fiber Mirror Polarization Insensitive Faserspiegelpolarisation unempfindlich Insensible à la polarisation du miroir de fibre Fibra espejo polarización insensible Polarização de espelho de fibra insensível Polarizzazione della fibra dello specchio insensibile Kuitupeilin polarisaatio ei ole herkkä HI780 780HP PM850 PM980 PM780HP 5/125um 4/125um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FFMR 830nm 820nm 840nm 825nm 835nm 836nm Fiber Mirror Polarization Insensitive Faserspiegelpolarisation unempfindlich Insensible à la polarisation du miroir de fibre Fibra espejo polarización insensible Polarização de espelho de fibra insensível Polarizzazione della fibra dello specchio insensibile Kuitupeilin polarisaatio ei ole herkkä HI780 780HP PM850 PM980 PM780HP 5/125um 4/125um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FFMR 830nm 820nm 840nm 825nm 835nm 836nm Fiber Mirror Polarization Insensitive Faserspiegelpolarisation unempfindlich Insensible à la polarisation du miroir de fibre Fibra espejo polarización insensible Polarização de espelho de fibra insensível Polarizzazione della fibra dello specchio insensibile Kuitupeilin polarisaatio ei ole herkkä HI780 780HP PM850 PM980 PM780HP 5/125um 4/125um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda
TYPICAL SPECIFICATIONS
Center Wavelength 830nm
Insertion Loss <=1.4dB
PDL (SM Fiber Type) <=0.2dB
Extinction Ratio (PM Fiber Type) >=20dB
SM Fiber Type HI780 Fiber or 780-HP Fiber
PM Fiber Type PM850 Fiber or PM780-HP Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

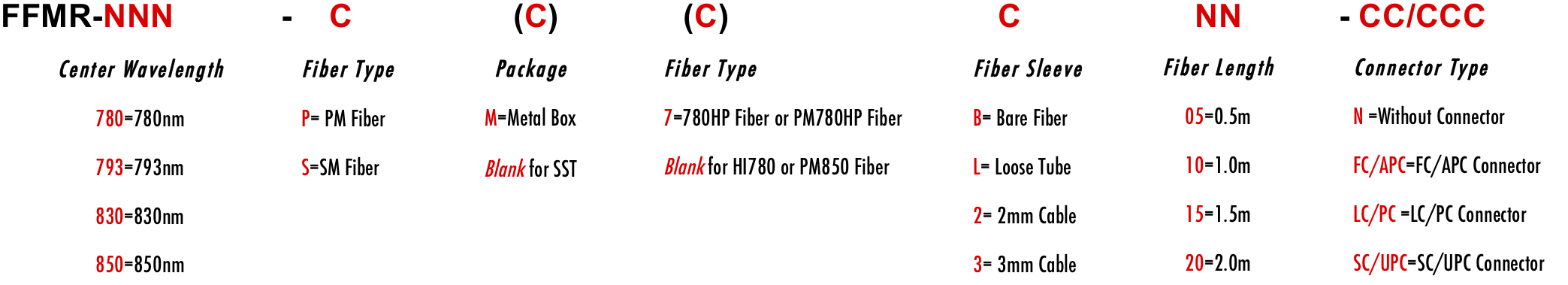

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
