1120nm Partial Reflective Fiber Mirror for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Partial Reflective Fiber Mirror (PFM) is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and High Reliability. The Partial Reflective Fiber Mirror will reflect a partial percentage of transmitted signal backward to input fiber. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFPF 1120nm 1100nm 1140nm 1103nm 1105nm 1106nm 1110nm 1115nm 1125nm 1130nm 1135nm Partial Reflective Fiber Mirror Polarization Insensitive Teilweise reflektierende Faserspiegelpolarisation unempfindlich Polarizzazione parziale dello specchio in fibra riflettente insensibile Parcial reflectante de fibra espejo polarización insensible Polarização reflexiva parcial do espelho de fibra insensível Miroir à fibre réfléchissante partielle insensible à la polarisation Osittain heijastava kuitupeili, polarisaatio herkkä HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFPF 1120nm 1100nm 1140nm 1103nm 1105nm 1106nm 1110nm 1115nm 1125nm 1130nm 1135nm Partial Reflective Fiber Mirror Polarization Insensitive Teilweise reflektierende Faserspiegelpolarisation unempfindlich Polarizzazione parziale dello specchio in fibra riflettente insensibile Parcial reflectante de fibra espejo polarización insensible Polarização reflexiva parcial do espelho de fibra insensível Miroir à fibre réfléchissante partielle insensible à la polarisation Osittain heijastava kuitupeili, polarisaatio herkkä HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFPF 1120nm 1100nm 1140nm 1103nm 1105nm 1106nm 1110nm 1115nm 1125nm 1130nm 1135nm Partial Reflective Fiber Mirror Polarization Insensitive Teilweise reflektierende Faserspiegelpolarisation unempfindlich Polarizzazione parziale dello specchio in fibra riflettente insensibile Parcial reflectante de fibra espejo polarización insensible Polarização reflexiva parcial do espelho de fibra insensível Miroir à fibre réfléchissante partielle insensible à la polarisation Osittain heijastava kuitupeili, polarisaatio herkkä HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 01SS 02SS 03SS 04SS 05SS 06SS 07SS 08SS 09SS 10SS 11SS 12SS 13SS 14SS 15SS 16SS 17SS 18SS 19SS 20SS 21SS 22SS 23SS 24SS 25SS 26SS 27SS 28SS 29SS 30SS 31SS 32SS 33SS 34SS 35SS 36SS 37SS 38SS 39SS 40SS 41SS 42SS 43SS 44SS 45SS 46SS 47SS 48SS 49SS 50SS 51SS 52SS 53SS 54SS 55SS 56SS 57SS 58SS 59SS 60SS 61SS 62SS 63SS 64SS 65SS 66SS 67SS 68SS 69SS 70SS 71SS 72SS 73SS 74SS 75SS 76SS 77SS 78SS 79SS 80SS 81SS 82SS 83SS 84SS 85SS 86SS 87SS 88SS 89SS 90SS 91SS 92SS 93SS 94SS 95SS 96SS 97SS 98SS 99SS 01SP 02SP 03SP 04SP 05SP 06SP 07SP 08SP 09SP 10SP 11SP 12SP 13SP 14SP 15SP 16SP 17SP 18SP 19SP 20SP 21SP 22SP 23SP 24SP 25SP 26SP 27SP 28SP 29SP 30SP 31SP 32SP 33SP 34SP 35SP 36SP 37SP 38SP 39SP 40SP 41SP 42SP 43SP 44SP 45SP 46SP 47SP 48SP 49SP 50SP 51SP 52SP 53SP 54SP 55SP 56SP 57SP 58SP 59SP 60SP 61SP 62SP 63SP 64SP 65SP 66SP 67SP 68SP 69SP 70SP 71SP 72SP 73SP 74SP 75SP 76SP 77SP 78SP 79SP 80SP 81SP 82SP 83SP 84SP 85SP 86SP 87SP 88SP 89SP 90SP 91SP 92SP 93SP 94SP 95SP 96SP 97SP 98SP 99SP 01PS 02PS 03PS 04PS 05PS 06PS 07PS 08PS 09PS 10PS 11PS 12PS 13PS 14PS 15PS 16PS 17PS 18PS 19PS 20PS 21PS 22PS 23PS 24PS 25PS 26PS 27PS 28PS 29PS 30PS 31PS 32PS 33PS 34PS 35PS 36PS 37PS 38PS 39PS 40PS 41PS 42PS 43PS 44PS 45PS 46PS 47PS 48PS 49PS 50PS 51PS 52PS 53PS 54PS 55PS 56PS 57PS 58PS 59PS 60PS 61PS 62PS 63PS 64PS 65PS 66PS 67PS 68PS 69PS 70PS 71PS 72PS 73PS 74PS 75PS 76PS 77PS 78PS 79PS 80PS 81PS 82PS 83PS 84PS 85PS 86PS 87PS 88PS 89PS 90PS 91PS 92PS 93PS 94PS 95PS 96PS 97PS 98PS 99PS 01PP 02PP 03PP 04PP 05PP 06PP 07PP 08PP 09PP 10PP 11PP 12PP 13PP 14PP 15PP 16PP 17PP 18PP 19PP 20PP 21PP 22PP 23PP 24PP 25PP 26PP 27PP 28PP 29PP 30PP 31PP 32PP 33PP 34PP 35PP 36PP 37PP 38PP 39PP 40PP 41PP 42PP 43PP 44PP 45PP 46PP 47PP 48PP 49PP 50PP 51PP 52PP 53PP 54PP 55PP 56PP 57PP 58PP 59PP 60PP 61PP 62PP 63PP 64PP 65PP 66PP 67PP 68PP 69PP 70PP 71PP 72PP 73PP 74PP 75PP 76PP 77PP 78PP 79PP 80PP 81PP 82PP 83PP 84PP 85PP 86PP 87PP 88PP 89PP 90PP 91PP 92PP 93PP 94PP 95PP 96PP 97PP 98PP 99PP
TYPICAL SPECIFICATIONS
Center Wavelength 1120nm
Excess Loss <=1.0dB
Nominal Reflective Ratio 1%, 2%, 5%, 10%, 20%, 50%, 80%, 90%, 99%
PDL (SM Fiber Type) <=0.2dB
Extinction Ratio (PM Fiber Type) >=18dB
SM Fiber Type HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
PM Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

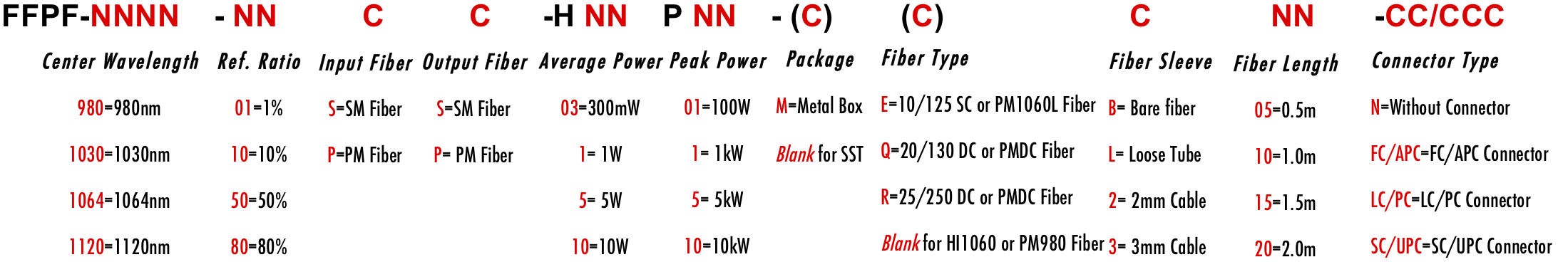

ORDERING INFORMATION/PART NUMBER(PN)
