1310nm High Power PM Optical Filter Coupler

DESCRIPTION
Haphit provides fiber based passive components. The Optical Filter Coupler is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide & Flat Spectrum and Various Split Ratio. The Optical Filter Coupler will split the signal into 2 or more channels at a certain ratio. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPFC 1310nm 1260nm 1350nm 1265nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1306nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1245nm Optical Filter Coupler Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile 1x2 2x2 PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FPFC 1310nm 1260nm 1350nm 1265nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1306nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1245nm Optical Filter Coupler Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile 1x2 2x2 PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FPFC 1310nm 1260nm 1350nm 1265nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1306nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1245nm Optical Filter Coupler Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile 1x2 2x2 PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave 001P1 01P1 02P1 03P1 04P1 05P1 06P1 07P1 08P1 09P1 10P1 11P1 12P1 13P1 14P1 15P1 16P1 17P1 18P1 19P1 20P1 21P1 22P1 23P1 24P1 25P1 26P1 27P1 28P1 29P1 30P1 31P1 32P1 33P1 34P1 35P1 36P1 37P1 38P1 39P1 40P1 41P1 42P1 43P1 44P1 45P1 46P1 47P1 48P1 49P1 50P1 51P1 52P1 53P1 54P1 55P1 56P1 57P1 58P1 59P1 60P1 61P1 62P1 63P1 64P1 65P1 66P1 67P1 68P1 69P1 70P1 71P1 72P1 73P1 74P1 75P1 76P1 77P1 78P1 79P1 80P1 81P1 82P1 83P1 84P1 85P1 86P1 87P1 88P1 89P1 90P1 91P1 92P1 93P1 94P1 95P1 96P1 97P1 98P1 99P1 001P2 01P2 02P2 03P2 04P2 05P2 06P2 07P2 08P2 09P2 10P2 11P2 12P2 13P2 14P2 15P2 16P2 17P2 18P2 19P2 20P2 21P2 22P2 23P2 24P2 25P2 26P2 27P2 28P2 29P2 30P2 31P2 32P2 33P2 34P2 35P2 36P2 37P2 38P2 39P2 40P2 41P2 42P2 43P2 44P2 45P2 46P2 47P2 48P2 49P2 50P2 51P2 52P2 53P2 54P2 55P2 56P2 57P2 58P2 59P2 60P2 61P2 62P2 63P2 64P2 65P2 66P2 67P2 68P2 69P2 70P2 71P2 72P2 73P2 74P2 75P2 76P2 77P2 78P2 79P2 80P2 81P2 82P2 83P2 84P2 85P2 86P2 87P2 88P2 89P2 90P2 91P2 92P2 93P2 94P2 95P2 96P2 97P2 98P2 99P2 001PH 01PH 02PH 03PH 04PH 05PH 06PH 07PH 08PH 09PH 10PH 11PH 12PH 13PH 14PH 15PH 16PH 17PH 18PH 19PH 20PH 21PH 22PH 23PH 24PH 25PH 26PH 27PH 28PH 29PH 30PH 31PH 32PH 33PH 34PH 35PH 36PH 37PH 38PH 39PH 40PH 41PH 42PH 43PH 44PH 45PH 46PH 47PH 48PH 49PH 50PH 51PH 52PH 53PH 54PH 55PH 56PH 57PH 58PH 59PH 60PH 61PH 62PH 63PH 64PH 65PH 66PH 67PH 68PH 69PH 70PH 71PH 72PH 73PH 74PH 75PH 76PH 77PH 78PH 79PH 80PH 81PH 82PH 83PH 84PH 85PH 86PH 87PH 88PH 89PH 90PH 91PH 92PH 93PH 94PH 95PH 96PH 97PH 98PH 99PH 001PT 01PT 02PT 03PT 04PT 05PT 06PT 07PT 08PT 09PT 10PT 11PT 12PT 13PT 14PT 15PT 16PT 17PT 18PT 19PT 20PT 21PT 22PT 23PT 24PT 25PT 26PT 27PT 28PT 29PT 30PT 31PT 32PT 33PT 34PT 35PT 36PT 37PT 38PT 39PT 40PT 41PT 42PT 43PT 44PT 45PT 46PT 47PT 48PT 49PT 50PT 51PT 52PT 53PT 54PT 55PT 56PT 57PT 58PT 59PT 60PT 61PT 62PT 63PT 64PT 65PT 66PT 67PT 68PT 69PT 70PT 71PT 72PT 73PT 74PT 75PT 76PT 77PT 78PT 79PT 80PT 81PT 82PT 83PT 84PT 85PT 86PT 87PT 88PT 89PT 90PT 91PT 92PT 93PT 94PT 95PT 96PT 97PT 98PT 99PT 001S1 01S1 02S1 03S1 04S1 05S1 06S1 07S1 08S1 09S1 10S1 11S1 12S1 13S1 14S1 15S1 16S1 17S1 18S1 19S1 20S1 21S1 22S1 23S1 24S1 25S1 26S1 27S1 28S1 29S1 30S1 31S1 32S1 33S1 34S1 35S1 36S1 37S1 38S1 39S1 40S1 41S1 42S1 43S1 44S1 45S1 46S1 47S1 48S1 49S1 50S1 51S1 52S1 53S1 54S1 55S1 56S1 57S1 58S1 59S1 60S1 61S1 62S1 63S1 64S1 65S1 66S1 67S1 68S1 69S1 70S1 71S1 72S1 73S1 74S1 75S1 76S1 77S1 78S1 79S1 80S1 81S1 82S1 83S1 84S1 85S1 86S1 87S1 88S1 89S1 90S1 91S1 92S1 93S1 94S1 95S1 96S1 97S1 98S1 99S1 001S2 01S2 02S2 03S2 04S2 05S2 06S2 07S2 08S2 09S2 10S2 11S2 12S2 13S2 14S2 15S2 16S2 17S2 18S2 19S2 20S2 21S2 22S2 23S2 24S2 25S2 26S2 27S2 28S2 29S2 30S2 31S2 32S2 33S2 34S2 35S2 36S2 37S2 38S2 39S2 40S2 41S2 42S2 43S2 44S2 45S2 46S2 47S2 48S2 49S2 50S2 51S2 52S2 53S2 54S2 55S2 56S2 57S2 58S2 59S2 60S2 61S2 62S2 63S2 64S2 65S2 66S2 67S2 68S2 69S2 70S2 71S2 72S2 73S2 74S2 75S2 76S2 77S2 78S2 79S2 80S2 81S2 82S2 83S2 84S2 85S2 86S2 87S2 88S2 89S2 90S2 91S2 92S2 93S2 94S2 95S2 96S2 97S2 98S2 99S2 001SH 01SH 02SH 03SH 04SH 05SH 06SH 07SH 08SH 09SH 10SH 11SH 12SH 13SH 14SH 15SH 16SH 17SH 18SH 19SH 20SH 21SH 22SH 23SH 24SH 25SH 26SH 27SH 28SH 29SH 30SH 31SH 32SH 33SH 34SH 35SH 36SH 37SH 38SH 39SH 40SH 41SH 42SH 43SH 44SH 45SH 46SH 47SH 48SH 49SH 50SH 51SH 52SH 53SH 54SH 55SH 56SH 57SH 58SH 59SH 60SH 61SH 62SH 63SH 64SH 65SH 66SH 67SH 68SH 69SH 70SH 71SH 72SH 73SH 74SH 75SH 76SH 77SH 78SH 79SH 80SH 81SH 82SH 83SH 84SH 85SH 86SH 87SH 88SH 89SH 90SH 91SH 92SH 93SH 94SH 95SH 96SH 97SH 98SH 99SH 001ST 01ST 02ST 03ST 04ST 05ST 06ST 07ST 08ST 09ST 10ST 11ST 12ST 13ST 14ST 15ST 16ST 17ST 18ST 19ST 20ST 21ST 22ST 23ST 24ST 25ST 26ST 27ST 28ST 29ST 30ST 31ST 32ST 33ST 34ST 35ST 36ST 37ST 38ST 39ST 40ST 41ST 42ST 43ST 44ST 45ST 46ST 47ST 48ST 49ST 50ST 51ST 52ST 53ST 54ST 55ST 56ST 57ST 58ST 59ST 60ST 61ST 62ST 63ST 64ST 65ST 66ST 67ST 68ST 69ST 70ST 71ST 72ST 73ST 74ST 75ST 76ST 77ST 78ST 79ST 80ST 81ST 82ST 83ST 84ST 85ST 86ST 87ST 88ST 89ST 90ST 91ST 92ST 93ST 94ST 95ST 96ST 97ST 98ST 99ST 00151 0151 0251 0351 0451 0551 0651 0751 0851 0951 1051 1151 1251 1351 1451 1551 1651 1751 1851 1951 2051 2151 2251 2351 2451 2551 2651 2751 2851 2951 3051 3151 3251 3351 3451 3551 3651 3751 3851 3951 4051 4151 4251 4351 4451 4551 4651 4751 4851 4951 5051 5151 5251 5351 5451 5551 5651 5751 5851 5951 6051 6151 6251 6351 6451 6551 6651 6751 6851 6951 7051 7151 7251 7351 7451 7551 7651 7751 7851 7951 8051 8151 8251 8351 8451 8551 8651 8751 8851 8951 9051 9151 9251 9351 9451 9551 9651 9751 9851 9951 00152 0152 0252 0352 0452 0552 0652 0752 0852 0952 1052 1152 1252 1352 1452 1552 1652 1752 1852 1952 2052 2152 2252 2352 2452 2552 2652 2752 2852 2952 3052 3152 3252 3352 3452 3552 3652 3752 3852 3952 4052 4152 4252 4352 4452 4552 4652 4752 4852 4952 5052 5152 5252 5352 5452 5552 5652 5752 5852 5952 6052 6152 6252 6352 6452 6552 6652 6752 6852 6952 7052 7152 7252 7352 7452 7552 7652 7752 7852 7952 8052 8152 8252 8352 8452 8552 8652 8752 8852 8952 9052 9152 9252 9352 9452 9552 9652 9752 9852 9952 0015H 015H 025H 035H 045H 055H 065H 075H 085H 095H 105H 115H 125H 135H 145H 155H 165H 175H 185H 195H 205H 215H 225H 235H 245H 255H 265H 275H 285H 295H 305H 315H 325H 335H 345H 355H 365H 375H 385H 395H 405H 415H 425H 435H 445H 455H 465H 475H 485H 495H 505H 515H 525H 535H 545H 555H 565H 575H 585H 595H 605H 615H 625H 635H 645H 655H 665H 675H 685H 695H 705H 715H 725H 735H 745H 755H 765H 775H 785H 795H 805H 815H 825H 835H 845H 855H 865H 875H 885H 895H 905H 915H 925H 935H 945H 955H 965H 975H 985H 995H 0015T 015T 025T 035T 045T 055T 065T 075T 085T 095T 105T 115T 125T 135T 145T 155T 165T 175T 185T 195T 205T 215T 225T 235T 245T 255T 265T 275T 285T 295T 305T 315T 325T 335T 345T 355T 365T 375T 385T 395T 405T 415T 425T 435T 445T 455T 465T 475T 485T 495T 505T 515T 525T 535T 545T 555T 565T 575T 585T 595T 605T 615T 625T 635T 645T 655T 665T 675T 685T 695T 705T 715T 725T 735T 745T 755T 765T 775T 785T 795T 805T 815T 825T 835T 845T 855T 865T 875T 885T 895T 905T 915T 925T 935T 945T 955T 965T 975T 985T 995T 001A1 01A1 02A1 03A1 04A1 05A1 06A1 07A1 08A1 09A1 10A1 11A1 12A1 13A1 14A1 15A1 16A1 17A1 18A1 19A1 20A1 21A1 22A1 23A1 24A1 25A1 26A1 27A1 28A1 29A1 30A1 31A1 32A1 33A1 34A1 35A1 36A1 37A1 38A1 39A1 40A1 41A1 42A1 43A1 44A1 45A1 46A1 47A1 48A1 49A1 50A1 51A1 52A1 53A1 54A1 55A1 56A1 57A1 58A1 59A1 60A1 61A1 62A1 63A1 64A1 65A1 66A1 67A1 68A1 69A1 70A1 71A1 72A1 73A1 74A1 75A1 76A1 77A1 78A1 79A1 80A1 81A1 82A1 83A1 84A1 85A1 86A1 87A1 88A1 89A1 90A1 91A1 92A1 93A1 94A1 95A1 96A1 97A1 98A1 99A1 001A2 01A2 02A2 03A2 04A2 05A2 06A2 07A2 08A2 09A2 10A2 11A2 12A2 13A2 14A2 15A2 16A2 17A2 18A2 19A2 20A2 21A2 22A2 23A2 24A2 25A2 26A2 27A2 28A2 29A2 30A2 31A2 32A2 33A2 34A2 35A2 36A2 37A2 38A2 39A2 40A2 41A2 42A2 43A2 44A2 45A2 46A2 47A2 48A2 49A2 50A2 51A2 52A2 53A2 54A2 55A2 56A2 57A2 58A2 59A2 60A2 61A2 62A2 63A2 64A2 65A2 66A2 67A2 68A2 69A2 70A2 71A2 72A2 73A2 74A2 75A2 76A2 77A2 78A2 79A2 80A2 81A2 82A2 83A2 84A2 85A2 86A2 87A2 88A2 89A2 90A2 91A2 92A2 93A2 94A2 95A2 96A2 97A2 98A2 99A2 001AH 01AH 02AH 03AH 04AH 05AH 06AH 07AH 08AH 09AH 10AH 11AH 12AH 13AH 14AH 15AH 16AH 17AH 18AH 19AH 20AH 21AH 22AH 23AH 24AH 25AH 26AH 27AH 28AH 29AH 30AH 31AH 32AH 33AH 34AH 35AH 36AH 37AH 38AH 39AH 40AH 41AH 42AH 43AH 44AH 45AH 46AH 47AH 48AH 49AH 50AH 51AH 52AH 53AH 54AH 55AH 56AH 57AH 58AH 59AH 60AH 61AH 62AH 63AH 64AH 65AH 66AH 67AH 68AH 69AH 70AH 71AH 72AH 73AH 74AH 75AH 76AH 77AH 78AH 79AH 80AH 81AH 82AH 83AH 84AH 85AH 86AH 87AH 88AH 89AH 90AH 91AH 92AH 93AH 94AH 95AH 96AH 97AH 98AH 99AH 001AT 01AT 02AT 03AT 04AT 05AT 06AT 07AT 08AT 09AT 10AT 11AT 12AT 13AT 14AT 15AT 16AT 17AT 18AT 19AT 20AT 21AT 22AT 23AT 24AT 25AT 26AT 27AT 28AT 29AT 30AT 31AT 32AT 33AT 34AT 35AT 36AT 37AT 38AT 39AT 40AT 41AT 42AT 43AT 44AT 45AT 46AT 47AT 48AT 49AT 50AT 51AT 52AT 53AT 54AT 55AT 56AT 57AT 58AT 59AT 60AT 61AT 62AT 63AT 64AT 65AT 66AT 67AT 68AT 69AT 70AT 71AT 72AT 73AT 74AT 75AT 76AT 77AT 78AT 79AT 80AT 81AT 82AT 83AT 84AT 85AT 86AT 87AT 88AT 89AT 90AT 91AT 92AT 93AT 94AT 95AT 96AT 97AT 98AT 99AT
TYPICAL SPECIFICATIONS
Center Wavelength 1310nm
Bandwidth +/-40nm
Split Ratio 0.1:99.9, 1:99, 2:98, 5:95, 10:90, 20:80, 30:70, 40:60, 50:50
Configuration 1x2 or 2x2
Excess Loss <=1.0dB
Return Loss >=50dB
Extinction Ratio >=18dB (Standard 1x2), >=16dB (Standard 2x2)
>=20dB (High ER Type 1x2&2x2),
Work Mode Standard: Both Axis Working
High ER Type: Can Only Work in Slow Axis
Fiber Type PM1550 Fiber or 10/125um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~70degreeC

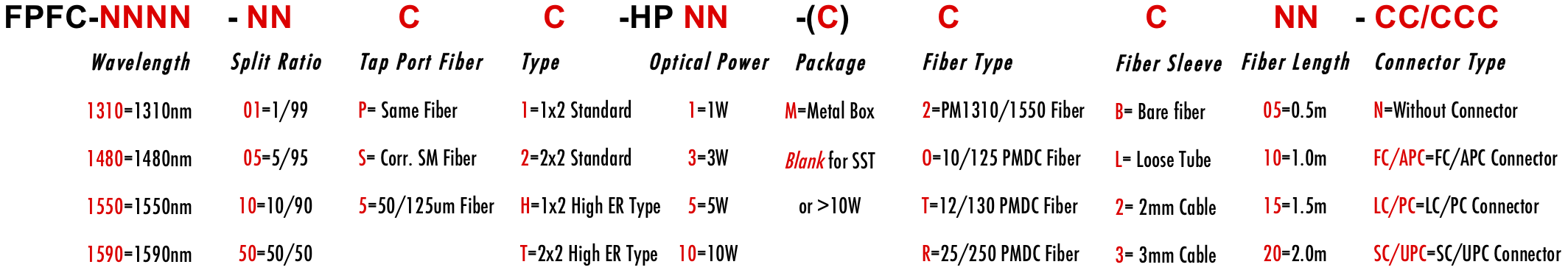

ORDERING INFORMATION/PART NUMBER(PN)
