2050nm PM 1x5 Filter Splitter for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Optical Filter Splitter is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide & Flat Spectrum and Various Configuration. The 1x5 Filter Splitter will split the signal into 5 channels at an even ratio or uneven ratio on request. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPFM 2050nm 2020nm 2080nm 2025nm 2030nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm 2070nm 2075nm Optical Filter Coupler Splitter Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile PM1550 PM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPFM 2050nm 2020nm 2080nm 2025nm 2030nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm 2070nm 2075nm Optical Filter Coupler Splitter Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile PM1550 PM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPFM 2050nm 2020nm 2080nm 2025nm 2030nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm 2070nm 2075nm Optical Filter Coupler Splitter Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile PM1550 PM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 1x5
TYPICAL SPECIFICATIONS
Center Wavelength 2050nm
Bandwidth +/-20nm
Configuration 1x5
Insertion Loss <=9.4dB
Uniformity <=1.5dB
Return Loss >=50dB
Extinction Ratio >=18dB
Work Mode Can only Work in Slow Axis and Fast Axis is blocked
Fiber Type PM1550 Fiber or PM1950 Fiber
10/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

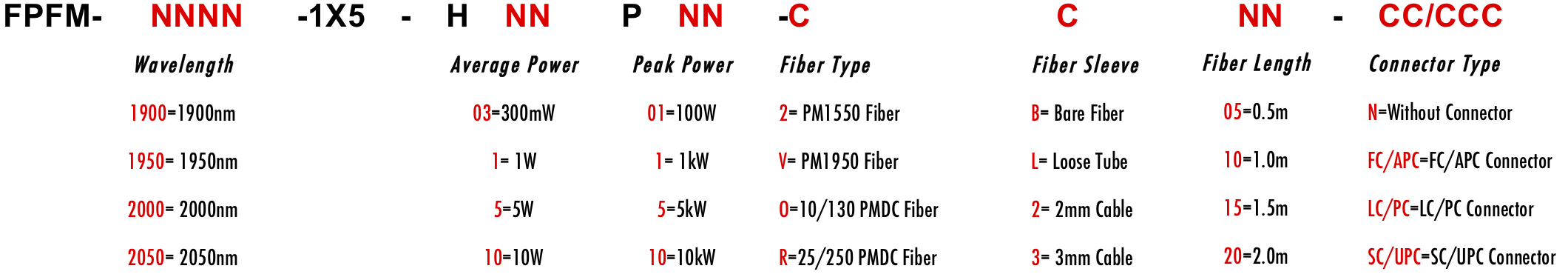

ORDERING INFORMATION/PART NUMBER(PN)
