1053nm MM Optical Filter Coupler

DESCRIPTION
Haphit provides fiber based passive components. The Optical Filter Coupler is made by micro-optics package technology with Multimode (MM) fiber in and MM fiber out. It features Wide & Flat Spectrum and Various Split Ratio. The Optical Filter Coupler will split the signal into 2 or more channels at a certain ratio. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMFC 1053nm 1030nm 1073nm 1035nm 1036nm 1040nm 1045nm 1050nm 1055nm 1056nm 1060nm 1064nm 1063nm 1065nm 1070nm Optical Filter Coupler Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile Multimode monimuoto Multimodo 1x2 2x2 Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type FMFC 1053nm 1030nm 1073nm 1035nm 1036nm 1040nm 1045nm 1050nm 1055nm 1056nm 1060nm 1064nm 1063nm 1065nm 1070nm Optical Filter Coupler Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile Multimode monimuoto Multimodo 1x2 2x2 Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type FMFC 1053nm 1030nm 1073nm 1035nm 1036nm 1040nm 1045nm 1050nm 1055nm 1056nm 1060nm 1064nm 1063nm 1065nm 1070nm Optical Filter Coupler Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile Multimode monimuoto Multimodo 1x2 2x2 Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type 0011 011 021 031 041 051 061 071 081 091 101 111 121 131 141 151 161 171 181 191 201 211 221 231 241 251 261 271 281 291 301 311 321 331 341 351 361 371 381 391 401 411 421 431 441 451 461 471 481 491 501 511 521 531 541 551 561 571 581 591 601 611 621 631 641 651 661 671 681 691 701 711 721 731 741 751 761 771 781 791 801 811 821 831 841 851 861 871 881 891 901 911 921 931 941 951 961 971 981 991 0012 012 022 032 042 052 062 072 082 092 102 112 122 132 142 152 162 172 182 192 202 212 222 232 242 252 262 272 282 292 302 312 322 332 342 352 362 372 382 392 402 412 422 432 442 452 462 472 482 492 502 512 522 532 542 552 562 572 582 592 602 612 622 632 642 652 662 672 682 692 702 712 722 732 742 752 762 772 782 792 802 812 822 832 842 852 862 872 882 892 902 912 922 932 942 952 962 972 982 992
TYPICAL SPECIFICATIONS
Center Wavelength 1053nm
Bandwidth +/-20nm
Split Ratio 1:99, 2:98, 5:95, 10:90, 20:80, 30:70, 40:60, 50:50
Configuration 1x2 or 2x2
Excess Loss <=1.0dB (1x2), <=1.4dB (2x2)
Return Loss >=35dB
Fiber Type 50/125um or 62.5/125um MM Fiber
50/125um OM3 MM Fiber
105/125um MM Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

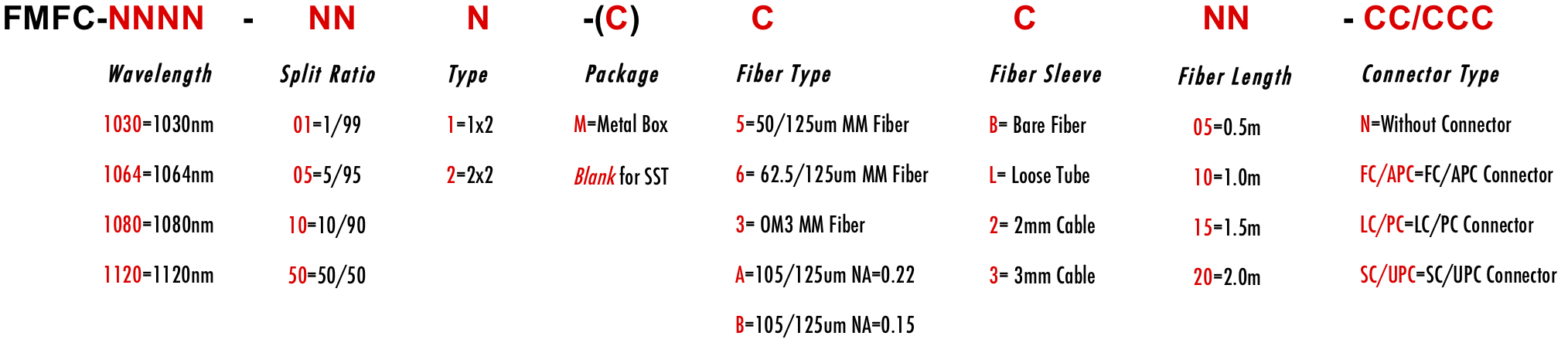

ORDERING INFORMATION/PART NUMBER(PN)
