930nm PM Optical Filter Coupler for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Optical Filter Coupler is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide & Flat Spectrum and Various Split Ratio. The Optical Filter Coupler will split the signal into 2 or more channels at a certain ratio. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPFC 930nm 910nm 950nm 915nm 920nm 925nm 935nm 940nm 945nm Optical Filter Coupler Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile 1x2 2x2 PM850 PM780HP PM980 PM980XP PM980HP LMA 4/125um 5/125um 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPFC 930nm 910nm 950nm 915nm 920nm 925nm 935nm 940nm 945nm Optical Filter Coupler Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile 1x2 2x2 PM850 PM780HP PM980 PM980XP PM980HP LMA 4/125um 5/125um 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPFC 930nm 910nm 950nm 915nm 920nm 925nm 935nm 940nm 945nm Optical Filter Coupler Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile 1x2 2x2 PM850 PM780HP PM980 PM980XP PM980HP LMA 4/125um 5/125um 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 001P1B 01P1B 02P1B 03P1B 04P1B 05P1B 06P1B 07P1B 08P1B 09P1B 10P1B 11P1B 12P1B 13P1B 14P1B 15P1B 16P1B 17P1B 18P1B 19P1B 20P1B 21P1B 22P1B 23P1B 24P1B 25P1B 26P1B 27P1B 28P1B 29P1B 30P1B 31P1B 32P1B 33P1B 34P1B 35P1B 36P1B 37P1B 38P1B 39P1B 40P1B 41P1B 42P1B 43P1B 44P1B 45P1B 46P1B 47P1B 48P1B 49P1B 50P1B 51P1B 52P1B 53P1B 54P1B 55P1B 56P1B 57P1B 58P1B 59P1B 60P1B 61P1B 62P1B 63P1B 64P1B 65P1B 66P1B 67P1B 68P1B 69P1B 70P1B 71P1B 72P1B 73P1B 74P1B 75P1B 76P1B 77P1B 78P1B 79P1B 80P1B 81P1B 82P1B 83P1B 84P1B 85P1B 86P1B 87P1B 88P1B 89P1B 90P1B 91P1B 92P1B 93P1B 94P1B 95P1B 96P1B 97P1B 98P1B 99P1B 001P2B 01P2B 02P2B 03P2B 04P2B 05P2B 06P2B 07P2B 08P2B 09P2B 10P2B 11P2B 12P2B 13P2B 14P2B 15P2B 16P2B 17P2B 18P2B 19P2B 20P2B 21P2B 22P2B 23P2B 24P2B 25P2B 26P2B 27P2B 28P2B 29P2B 30P2B 31P2B 32P2B 33P2B 34P2B 35P2B 36P2B 37P2B 38P2B 39P2B 40P2B 41P2B 42P2B 43P2B 44P2B 45P2B 46P2B 47P2B 48P2B 49P2B 50P2B 51P2B 52P2B 53P2B 54P2B 55P2B 56P2B 57P2B 58P2B 59P2B 60P2B 61P2B 62P2B 63P2B 64P2B 65P2B 66P2B 67P2B 68P2B 69P2B 70P2B 71P2B 72P2B 73P2B 74P2B 75P2B 76P2B 77P2B 78P2B 79P2B 80P2B 81P2B 82P2B 83P2B 84P2B 85P2B 86P2B 87P2B 88P2B 89P2B 90P2B 91P2B 92P2B 93P2B 94P2B 95P2B 96P2B 97P2B 98P2B 99P2B 001S1B 01S1B 02S1B 03S1B 04S1B 05S1B 06S1B 07S1B 08S1B 09S1B 10S1B 11S1B 12S1B 13S1B 14S1B 15S1B 16S1B 17S1B 18S1B 19S1B 20S1B 21S1B 22S1B 23S1B 24S1B 25S1B 26S1B 27S1B 28S1B 29S1B 30S1B 31S1B 32S1B 33S1B 34S1B 35S1B 36S1B 37S1B 38S1B 39S1B 40S1B 41S1B 42S1B 43S1B 44S1B 45S1B 46S1B 47S1B 48S1B 49S1B 50S1B 51S1B 52S1B 53S1B 54S1B 55S1B 56S1B 57S1B 58S1B 59S1B 60S1B 61S1B 62S1B 63S1B 64S1B 65S1B 66S1B 67S1B 68S1B 69S1B 70S1B 71S1B 72S1B 73S1B 74S1B 75S1B 76S1B 77S1B 78S1B 79S1B 80S1B 81S1B 82S1B 83S1B 84S1B 85S1B 86S1B 87S1B 88S1B 89S1B 90S1B 91S1B 92S1B 93S1B 94S1B 95S1B 96S1B 97S1B 98S1B 99S1B 001S2B 01S2B 02S2B 03S2B 04S2B 05S2B 06S2B 07S2B 08S2B 09S2B 10S2B 11S2B 12S2B 13S2B 14S2B 15S2B 16S2B 17S2B 18S2B 19S2B 20S2B 21S2B 22S2B 23S2B 24S2B 25S2B 26S2B 27S2B 28S2B 29S2B 30S2B 31S2B 32S2B 33S2B 34S2B 35S2B 36S2B 37S2B 38S2B 39S2B 40S2B 41S2B 42S2B 43S2B 44S2B 45S2B 46S2B 47S2B 48S2B 49S2B 50S2B 51S2B 52S2B 53S2B 54S2B 55S2B 56S2B 57S2B 58S2B 59S2B 60S2B 61S2B 62S2B 63S2B 64S2B 65S2B 66S2B 67S2B 68S2B 69S2B 70S2B 71S2B 72S2B 73S2B 74S2B 75S2B 76S2B 77S2B 78S2B 79S2B 80S2B 81S2B 82S2B 83S2B 84S2B 85S2B 86S2B 87S2B 88S2B 89S2B 90S2B 91S2B 92S2B 93S2B 94S2B 95S2B 96S2B 97S2B 98S2B 99S2B 00151B 0151B 0251B 0351B 0451B 0551B 0651B 0751B 0851B 0951B 1051B 1151B 1251B 1351B 1451B 1551B 1651B 1751B 1851B 1951B 2051B 2151B 2251B 2351B 2451B 2551B 2651B 2751B 2851B 2951B 3051B 3151B 3251B 3351B 3451B 3551B 3651B 3751B 3851B 3951B 4051B 4151B 4251B 4351B 4451B 4551B 4651B 4751B 4851B 4951B 5051B 5151B 5251B 5351B 5451B 5551B 5651B 5751B 5851B 5951B 6051B 6151B 6251B 6351B 6451B 6551B 6651B 6751B 6851B 6951B 7051B 7151B 7251B 7351B 7451B 7551B 7651B 7751B 7851B 7951B 8051B 8151B 8251B 8351B 8451B 8551B 8651B 8751B 8851B 8951B 9051B 9151B 9251B 9351B 9451B 9551B 9651B 9751B 9851B 9951B 00152B 0152B 0252B 0352B 0452B 0552B 0652B 0752B 0852B 0952B 1052B 1152B 1252B 1352B 1452B 1552B 1652B 1752B 1852B 1952B 2052B 2152B 2252B 2352B 2452B 2552B 2652B 2752B 2852B 2952B 3052B 3152B 3252B 3352B 3452B 3552B 3652B 3752B 3852B 3952B 4052B 4152B 4252B 4352B 4452B 4552B 4652B 4752B 4852B 4952B 5052B 5152B 5252B 5352B 5452B 5552B 5652B 5752B 5852B 5952B 6052B 6152B 6252B 6352B 6452B 6552B 6652B 6752B 6852B 6952B 7052B 7152B 7252B 7352B 7452B 7552B 7652B 7752B 7852B 7952B 8052B 8152B 8252B 8352B 8452B 8552B 8652B 8752B 8852B 8952B 9052B 9152B 9252B 9352B 9452B 9552B 9652B 9752B 9852B 9952B 001A1B 01A1B 02A1B 03A1B 04A1B 05A1B 06A1B 07A1B 08A1B 09A1B 10A1B 11A1B 12A1B 13A1B 14A1B 15A1B 16A1B 17A1B 18A1B 19A1B 20A1B 21A1B 22A1B 23A1B 24A1B 25A1B 26A1B 27A1B 28A1B 29A1B 30A1B 31A1B 32A1B 33A1B 34A1B 35A1B 36A1B 37A1B 38A1B 39A1B 40A1B 41A1B 42A1B 43A1B 44A1B 45A1B 46A1B 47A1B 48A1B 49A1B 50A1B 51A1B 52A1B 53A1B 54A1B 55A1B 56A1B 57A1B 58A1B 59A1B 60A1B 61A1B 62A1B 63A1B 64A1B 65A1B 66A1B 67A1B 68A1B 69A1B 70A1B 71A1B 72A1B 73A1B 74A1B 75A1B 76A1B 77A1B 78A1B 79A1B 80A1B 81A1B 82A1B 83A1B 84A1B 85A1B 86A1B 87A1B 88A1B 89A1B 90A1B 91A1B 92A1B 93A1B 94A1B 95A1B 96A1B 97A1B 98A1B 99A1B 001A2B 01A2B 02A2B 03A2B 04A2B 05A2B 06A2B 07A2B 08A2B 09A2B 10A2B 11A2B 12A2B 13A2B 14A2B 15A2B 16A2B 17A2B 18A2B 19A2B 20A2B 21A2B 22A2B 23A2B 24A2B 25A2B 26A2B 27A2B 28A2B 29A2B 30A2B 31A2B 32A2B 33A2B 34A2B 35A2B 36A2B 37A2B 38A2B 39A2B 40A2B 41A2B 42A2B 43A2B 44A2B 45A2B 46A2B 47A2B 48A2B 49A2B 50A2B 51A2B 52A2B 53A2B 54A2B 55A2B 56A2B 57A2B 58A2B 59A2B 60A2B 61A2B 62A2B 63A2B 64A2B 65A2B 66A2B 67A2B 68A2B 69A2B 70A2B 71A2B 72A2B 73A2B 74A2B 75A2B 76A2B 77A2B 78A2B 79A2B 80A2B 81A2B 82A2B 83A2B 84A2B 85A2B 86A2B 87A2B 88A2B 89A2B 90A2B 91A2B 92A2B 93A2B 94A2B 95A2B 96A2B 97A2B 98A2B 99A2B HS HF
TYPICAL SPECIFICATIONS
Center Wavelength
930nm
Bandwidth
+/-15nm
Split Ratio
0.1:99.9, 1:99, 2:98, 5:95, 10:90, 20:80, 30:70, 40:60, 50:50
Configuration
1x2 or 2x2
Excess Loss
<=1.4dB (1x2), <=1.6dB (2x2)
Return Loss
>=50dB
Extinction Ratio
>=18dB
Work Mode
Standard: Can Only Work in Slow Axis
B Type: Can work both in Slow Axis and Fast Axis
Fiber Type
PM850 Fiber, PM980 Fiber or PM1060L Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Average Power
300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse
100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature
0~50degreeC

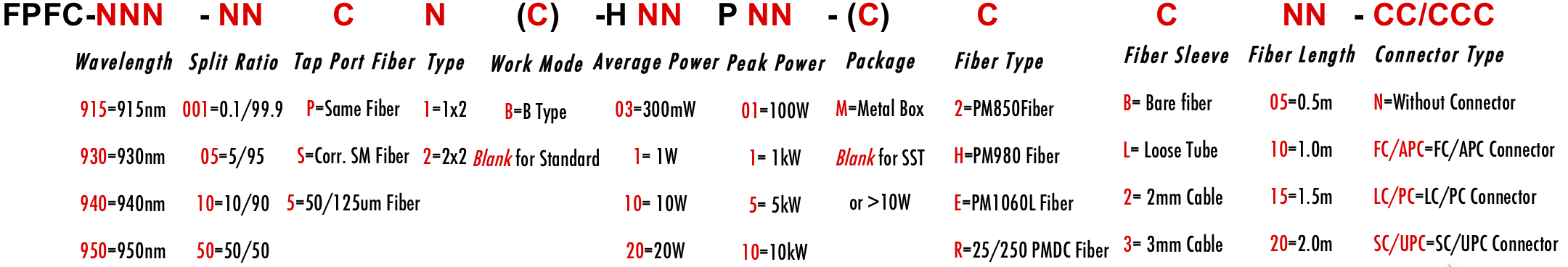

ORDERING INFORMATION/PART NUMBER(PN)
