650nm High Power Optical Fused Coupler

DESCRIPTION
Haphit provides fiber based passive components. The Optical Fused Coupler is made by micro-optics package technology with fiber in and fiber out. It features low Excess Loss and various Split Ratio. The Optical Fused Coupler will split the signal into 2 or more channels at a certain ratio. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLS 650nm 640nm 660nm 645nm 665nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Sicherung Coupleur Fusionné Optique Polariseur Insensible à la Puissance Splitter Ratio de Tap Fusion Fusion Splice Fusible Optisen sulakeliittimen polarisaatioherkkä virranjakaja Tap Tap Suhde Fusion Splice Sulake Acoplador con fusible óptico Polarización Divisor de potencia insensible Relación de derivación Fusible Fusible de empalme Acoplador com fusível óptico Polarização Insensível Divisor de potência Relação de derivação Fusion Splice Fuse 1x2 2x2 630HP 630XP S630HP 4/125um 3/125um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave FCLS 650nm 640nm 660nm 645nm 665nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Sicherung Coupleur Fusionné Optique Polariseur Insensible à la Puissance Splitter Ratio de Tap Fusion Fusion Splice Fusible Optisen sulakeliittimen polarisaatioherkkä virranjakaja Tap Tap Suhde Fusion Splice Sulake Acoplador con fusible óptico Polarización Divisor de potencia insensible Relación de derivación Fusible Fusible de empalme Acoplador com fusível óptico Polarização Insensível Divisor de potência Relação de derivação Fusion Splice Fuse 1x2 2x2 630HP 630XP S630HP 4/125um 3/125um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave FCLS 650nm 640nm 660nm 645nm 665nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Sicherung Coupleur Fusionné Optique Polariseur Insensible à la Puissance Splitter Ratio de Tap Fusion Fusion Splice Fusible Optisen sulakeliittimen polarisaatioherkkä virranjakaja Tap Tap Suhde Fusion Splice Sulake Acoplador con fusible óptico Polarización Divisor de potencia insensible Relación de derivación Fusible Fusible de empalme Acoplador com fusível óptico Polarização Insensível Divisor de potência Relação de derivação Fusion Splice Fuse 1x2 2x2 630HP 630XP S630HP 4/125um 3/125um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave 0011S 011S 021S 031S 041S 051S 061S 071S 081S 091S 101S 111S 121S 131S 141S 151S 161S 171S 181S 191S 201S 211S 221S 231S 241S 251S 261S 271S 281S 291S 301S 311S 321S 331S 341S 351S 361S 371S 381S 391S 401S 411S 421S 431S 441S 451S 461S 471S 481S 491S 501S 511S 521S 531S 541S 551S 561S 571S 581S 591S 601S 611S 621S 631S 641S 651S 661S 671S 681S 691S 701S 711S 721S 731S 741S 751S 761S 771S 781S 791S 801S 811S 821S 831S 841S 851S 861S 871S 881S 891S 901S 911S 921S 931S 941S 951S 961S 971S 981S 991S 0012S 012S 022S 032S 042S 052S 062S 072S 082S 092S 102S 112S 122S 132S 142S 152S 162S 172S 182S 192S 202S 212S 222S 232S 242S 252S 262S 272S 282S 292S 302S 312S 322S 332S 342S 352S 362S 372S 382S 392S 402S 412S 422S 432S 442S 452S 462S 472S 482S 492S 502S 512S 522S 532S 542S 552S 562S 572S 582S 592S 602S 612S 622S 632S 642S 652S 662S 672S 682S 692S 702S 712S 722S 732S 742S 752S 762S 772S 782S 792S 802S 812S 822S 832S 842S 852S 862S 872S 882S 892S 902S 912S 922S 932S 942S 952S 962S 972S 982S 992S 0011M 011M 021M 031M 041M 051M 061M 071M 081M 091M 101M 111M 121M 131M 141M 151M 161M 171M 181M 191M 201M 211M 221M 231M 241M 251M 261M 271M 281M 291M 301M 311M 321M 331M 341M 351M 361M 371M 381M 391M 401M 411M 421M 431M 441M 451M 461M 471M 481M 491M 501M 511M 521M 531M 541M 551M 561M 571M 581M 591M 601M 611M 621M 631M 641M 651M 661M 671M 681M 691M 701M 711M 721M 731M 741M 751M 761M 771M 781M 791M 801M 811M 821M 831M 841M 851M 861M 871M 881M 891M 901M 911M 921M 931M 941M 951M 961M 971M 981M 991M 0012M 012M 022M 032M 042M 052M 062M 072M 082M 092M 102M 112M 122M 132M 142M 152M 162M 172M 182M 192M 202M 212M 222M 232M 242M 252M 262M 272M 282M 292M 302M 312M 322M 332M 342M 352M 362M 372M 382M 392M 402M 412M 422M 432M 442M 452M 462M 472M 482M 492M 502M 512M 522M 532M 542M 552M 562M 572M 582M 592M 602M 612M 622M 632M 642M 652M 662M 672M 682M 692M 702M 712M 722M 732M 742M 752M 762M 772M 782M 792M 802M 812M 822M 832M 842M 852M 862M 872M 882M 892M 902M 912M 922M 932M 942M 952M 962M 972M 982M 992M
TYPICAL SPECIFICATIONS
Center Wavelength 650nm
Bandwidth +/-5nm
Split Ratio 0.1:99.9, 1:99, 2:98, 5:95, 10:90, 20:80, 30:70, 40:60, 50:50
Configuration 1x2 or 2x2
Typical Excess Loss <=1.0dB
Directivity >=50dB
Fiber Type 630HP Fiber
Max. Optical Power (CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Operating Temperature 0~50degreeC

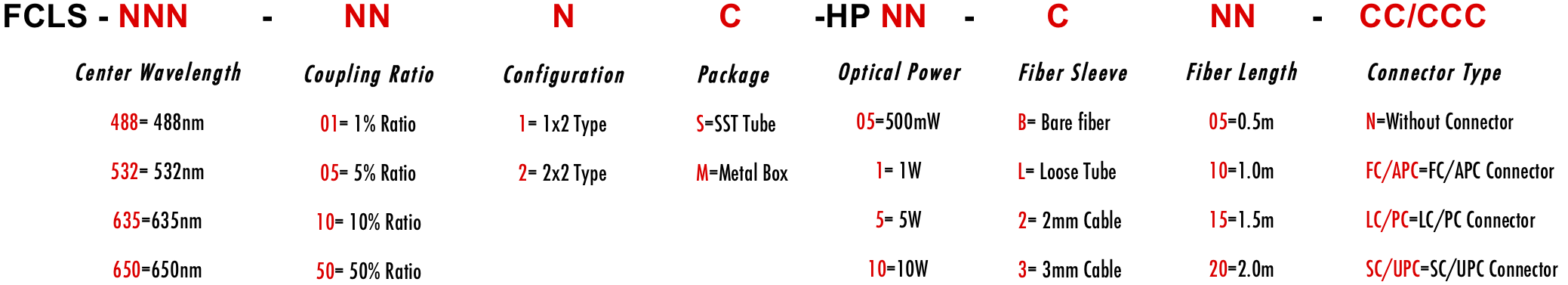

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
