1260~1650nm PLC 1x2/2x2 Splitter Module

DESCRIPTION
Haphit provides fiber based passive components. The Optical PLC Splitter Module is made by micro-optics package technology with fiber in and fiber out. It features low Excess Loss and wide spectrum. The Optical PLC Splitter will split the signal into 2 or more channels at an even ratio. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FLCS 1310nm 1260nm 1350nm 1265nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1306nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1345nm 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm 1550nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1590nm 1630nm 1595nm 1600nm 1605nm 1610nm 1615nm 1620nm 1625nm 1650nm 1630nm 1635nm 1640nm 1645nm PLC Planar Lightwave Circuit Polarization Insensitive Power Splitter Module Distributeur de puissance non sensible à polarisation de circuit d 'onde optique plane Circuito de Onda Luminosa Planar Polarização Divisão de poder sensível Polarización de circuitos de Onda plana Planaarin valoaaltopiirin polarisointi Tunteeton tehonjakaja Polarizzazione Insensibile 1x2 2x2 SMF-28 SMF28 8/125um 9/125um SC Single Clad Cladding 3-port Y Type FLCM 1310nm 1260nm 1350nm 1265nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1306nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1345nm 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm 1550nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1590nm 1630nm 1595nm 1600nm 1605nm 1610nm 1615nm 1620nm 1625nm 1650nm 1630nm 1635nm 1640nm 1645nm PLC Planar Lightwave Circuit Polarization Insensitive Power Splitter Distributeur de puissance non sensible à polarisation de circuit d 'onde optique plane Circuito de Onda Luminosa Planar Polarização Divisão de poder sensível Polarización de circuitos de Onda plana Planaarin valoaaltopiirin polarisointi Tunteeton tehonjakaja Polarizzazione Insensibile 1x2 2x2 SMF-28 SMF28 8/125um 9/125um SC Single Clad Cladding 3-port Y Type FLCS 1310nm 1260nm 1350nm 1265nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1306nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1345nm 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm 1550nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1590nm 1630nm 1595nm 1600nm 1605nm 1610nm 1615nm 1620nm 1625nm 1650nm 1630nm 1635nm 1640nm 1645nm PLC Planar Lightwave Circuit Polarization Insensitive Power Splitter Distributeur de puissance non sensible à polarisation de circuit d 'onde optique plane Circuito de Onda Luminosa Planar Polarização Divisão de poder sensível Polarización de circuitos de Onda plana Planaarin valoaaltopiirin polarisointi Tunteeton tehonjakaja Polarizzazione Insensibile 1x2 2x2 SMF-28 SMF28 8/125um 9/125um SC Single Clad Cladding 3-port Y Type FLCS 1310nm 1260nm 1350nm 1265nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1306nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1345nm 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm 1550nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1590nm 1630nm 1595nm 1600nm 1605nm 1610nm 1615nm 1620nm 1625nm 1650nm 1630nm 1635nm 1640nm 1645nm PLC Planar Lightwave Circuit Polarization Insensitive Power Splitter Distributeur de puissance non sensible à polarisation de circuit d 'onde optique plane Circuito de Onda Luminosa Planar Polarização Divisão de poder sensível Polarización de circuitos de Onda plana Planaarin valoaaltopiirin polarisointi Tunteeton tehonjakaja Polarizzazione Insensibile 1x2 2x2 SMF-28 SMF28 8/125um 9/125um SC Single Clad Cladding 3-port Y Type 1x2 1x02 2x2 2x02
TYPICAL SPECIFICATIONS
Working Wavelength 1260~1650nm
Configuration 1x2 or 2x2
Insertion Loss <=4.1dB (1x2 Type); <=4.3dB (2x2 Type)
Uniformity <=0.6dB (1x2 Type) <=0.8dB (2x2 Type)
PDL <=0.2dB
Return Loss >=50dB
Directivity >=55dB
Fiber Type SMF-28 Fiber
Max. Optical Power (CW) 300mW
Operating Temperature -40~85degreeC

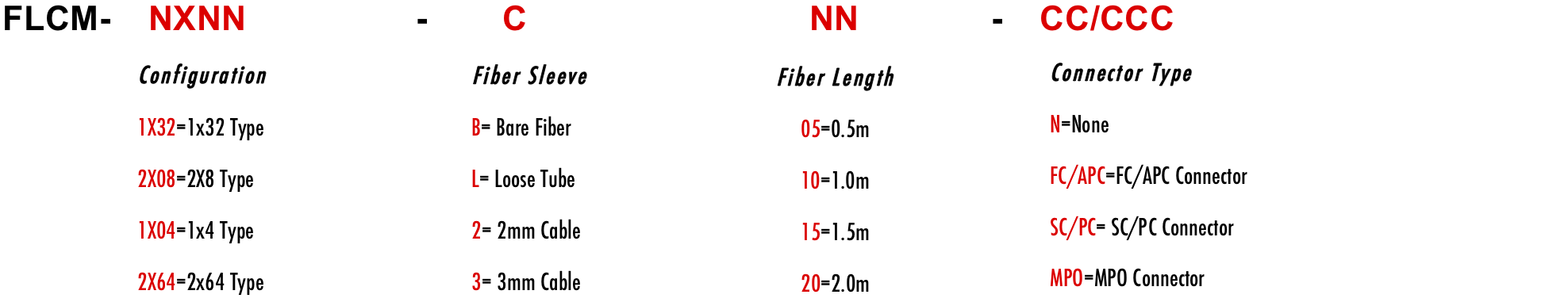

ORDERING INFORMATION/PART NUMBER(PN)
