793nm 3X1 Multimode Pump Combiner
DESCRIPTION
Haphit provides fiber based passive components. The Optical Multimode Pump Combiner is made by Fusion Splice technology with fiber in and fiber out. It features High Coupling Ratio and Various Configuration. The Optical Multimode Pump Combiner will combine 2 or more channels of high power pump light into one multimode fiber and output. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMPC 793nm 750nm 860nm 755nm 760nm 765nm 770nm 775nm 780nm 785nm 790nm 795nm 800nm 805nm 808nm 810nm 815nm 820nm 825nm 830nm 835nm 840nm 845nm 850nm 855nm high power optical fiber multimode pump combiner laser combiner Hochleistungs-Multimode-Pumpenkombinierer für optische Fasern Laserkombinierer combinador de bomba multimodo de fibra óptica de alta potência combinador combineur de pompe à fibre optique haute puissance suuritehoinen optisen kuidun monimoodipumppuyhdistin laseryhdistin Combinador láser de combinador de bomba multimodo de fibra óptica de alta potencia combinatore laser combinatore pompa multimodale in fibra ottica ad alta potenza ??cznik laserowy o du?ej mocy z wielomodow? pomp? ?wiat?owodow? 3X1 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMPC 793nm 750nm 860nm 755nm 760nm 765nm 770nm 775nm 780nm 785nm 790nm 795nm 800nm 805nm 808nm 810nm 815nm 820nm 825nm 830nm 835nm 840nm 845nm 850nm 855nm high power optical fiber multimode pump combiner laser combiner Hochleistungs-Multimode-Pumpenkombinierer für optische Fasern Laserkombinierer combinador de bomba multimodo de fibra óptica de alta potência combinador combineur de pompe à fibre optique haute puissance suuritehoinen optisen kuidun monimoodipumppuyhdistin laseryhdistin Combinador láser de combinador de bomba multimodo de fibra óptica de alta potencia combinatore laser combinatore pompa multimodale in fibra ottica ad alta potenza ??cznik laserowy o du?ej mocy z wielomodow? pomp? ?wiat?owodow? 3X1 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMPC 793nm 750nm 860nm 755nm 760nm 765nm 770nm 775nm 780nm 785nm 790nm 795nm 800nm 805nm 808nm 810nm 815nm 820nm 825nm 830nm 835nm 840nm 845nm 850nm 855nm high power optical fiber multimode pump combiner laser combiner Hochleistungs-Multimode-Pumpenkombinierer für optische Fasern Laserkombinierer combinador de bomba multimodo de fibra óptica de alta potência combinador combineur de pompe à fibre optique haute puissance suuritehoinen optisen kuidun monimoodipumppuyhdistin laseryhdistin Combinador láser de combinador de bomba multimodo de fibra óptica de alta potencia combinatore laser combinatore pompa multimodale in fibra ottica ad alta potenza ??cznik laserowy o du?ej mocy z wielomodow? pomp? ?wiat?owodow? 3X1 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMPC 793nm 750nm 860nm 755nm 760nm 765nm 770nm 775nm 780nm 785nm 790nm 795nm 800nm 805nm 808nm 810nm 815nm 820nm 825nm 830nm 835nm 840nm 845nm 850nm 855nm high power optical fiber multimode pump combiner laser combiner Hochleistungs-Multimode-Pumpenkombinierer für optische Fasern Laserkombinierer combinador de bomba multimodo de fibra óptica de alta potência combinador combineur de pompe à fibre optique haute puissance suuritehoinen optisen kuidun monimoodipumppuyhdistin laseryhdistin Combinador láser de combinador de bomba multimodo de fibra óptica de alta potencia combinatore laser combinatore pompa multimodale in fibra ottica ad alta potenza ??cznik laserowy o du?ej mocy z wielomodow? pomp? ?wiat?owodow? 3X1 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave 3
TYPICAL SPECIFICATIONS
Pump Wavelength 793nm
Configuration 3X1
Input Pump Fiber 105/125um NA=0.12(D), NA=0.15(B) or NA=0.22(A)
106.5/125um NA=0.22(J), 200/220um, NA=0.22(C),
220/242um NA=0.22(C1), or specified by customer
Output Fiber 105/125um NA=0.12(D), NA=0.15(B) or NA=0.22(A)
106.5/125um NA=0.22(J), 200/220um, NA=0.22(C),
220/242um NA=0.22(C1), 400/440um NA=0.22(U),
Output Fiber 6/125um NA=0.14(N), 5/130um NA=0.12(N1),
8/125um NA=0.12(M), 6/125um NA=0.18(M1),
10/125um NA=0.075(O), 10/130um NA=0.15(O1),
15/130um NA=0.075(W), 20/130um NA=0.075(Q),
Output Fiber 25/250um NA=0.065(R), 25/300um NA=0.09(G),
25/250um NA=0.09(R2),25/400um NA=0.065(R1),
30/250um NA=0.06(R6), 30/400um NA=0.06(R3),
25/400um NA=0.09(R4), or specified by customer
Max. Input Pump Power per Port 25W, 50W, 100W, 200W, 300W, 500W, 1000W
Pump Efficiency >=90%
Operating Temperature 0~50degreeC

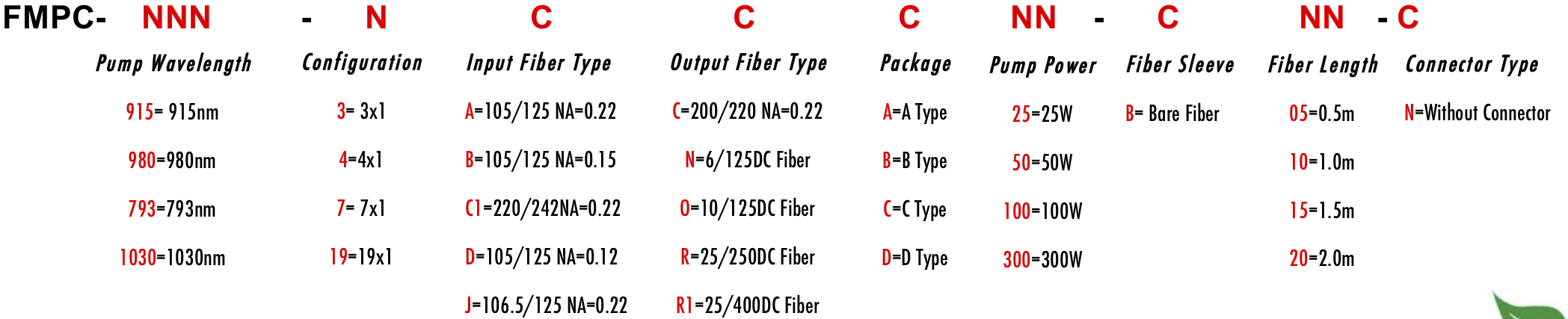

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
