1550nm (18+1)x1Multimode Pump & Signal Combiner
DESCRIPTION
Haphit provides fiber based passive components. The Optical Multimode Pump & Signal Combiner is made by Fusion Splice technology with fiber in and fiber out. It features High Coupling Ratio and Various Configuration. The Optical Multimode Pump & Signal Combiner will combine 2 or more channels of high power pump light into one multimode fiber and output. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMPS 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm high power optical fiber Multimode Pump and Signal Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (18+1)x1 18+1x1 19x1 SMF-28 SMF28 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMPS 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm high power optical fiber Multimode Pump and Signal Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (18+1)x1 18+1x1 19x1 SMF-28 SMF28 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMPS 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm high power optical fiber Multimode Pump and Signal Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (18+1)x1 18+1x1 19x1 SMF-28 SMF28 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMPS 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm high power optical fiber Multimode Pump and Signal Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (18+1)x1 18+1x1 19x1 SMF-28 SMF28 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave 9115 9315 9515 9715 9815 1415
TYPICAL SPECIFICATIONS
Pump Wavelength 915nm, 950nm, 975nm, 980nm, 1480nm
Signal Wavelength 1550nm
Configuration (18+1)x1
Input Pump Fiber 105/125um NA=0.12(D), NA=0.15(B) or NA=0.22(A)
106.5/125um NA=0.22(J), 200/220um, NA=0.22(C),
220/242um NA=0.22(C1), or specified by customer
Signal Fiber & Common Fiber SMF-28 Fiber(S), 8/125um NA=0.12(M), 6/125um NA=0.18(M1),
10/130um NA=0.075(O), 12/130um NA=0.2(T), 15/130um NA=0.075(W),
Signal Fiber & Common Fiber 20/130um NA=0.075(Q), 25/250um NA=0.065(R), 25/300um NA=0.09(G),
25/400um NA=0.065(R1), 30/250um NA=0.06(R6), 30/400um NA=0.06(R3),
or specified by customer
Pump Direction Forward Pump or Backward Pump
Signal Insertion Loss <=0.8dB
Max. Pump Power per Port (CW) 25W, 50W, 100W, 200W, 300W, 500W, 1000W
Max. Input Signal Power (CW) 10W, 50W, 100W, 200W, 500W, 1000W, 2000W
Pump Efficiency >=90%
Operating Temperature 0~50degreeC

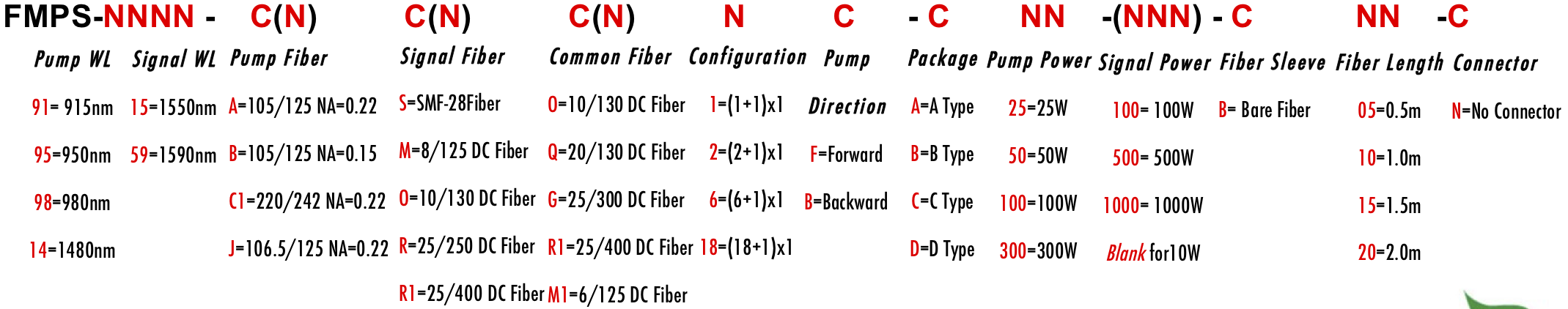

ORDERING INFORMATION/PART NUMBER(PN)
